Waveguide Single Channel Rotary Joint

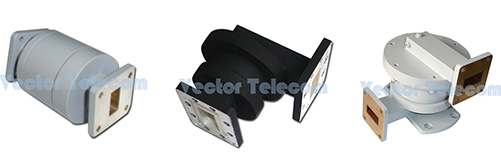

Rotary Joints (rotary couplers) are used to transmit microwave energy from stationary lines to rotating lines. The rotary joint is an electro-mechanical device with RF performance dependent upon rigorous electrical and mechanical design. Available styles are defined by physical geometry as follows:
I-style - Two in-line arms both collinear with the axis of rotation.
L-style - One arm is perpendicular to the axis of rotation.
U-style - Both arms are perpendicular to the axis of rotation.
Waveguide Single Channel Rotary Joint
Waveguide Single Channel Rotary Joint
Download Waveguide Single Channel Rotary Joint Catalogue »
Waveguide Single Channel Rotary Joint Product Range
 MODEL NO  FREQ RANGE  OPERATING BANDWIDTH  VSWR  VSWR WOW  IL  IL WOW  WG TYPE (IEC/EIA)  FLANGE TYPE  PDF Datasheet
  (GHz) (MHz) Max (dB) Max (dB)
VT32WRJIPPA 2.60-3.95 200 1.2 0.05 0.3 0.1 R32/WR284 FDP/FDM more »
VT32WRJLPPA 2.60-3.95 200 1.2 0.05 0.3 0.1 R32/WR284 FDP/FDM more »
VT32WRJUPPA 2.60-3.95 200 1.2 0.05 0.3 0.1 R32/WR284 FDP/FDM more »
VT40WRJIPPA 3.22-4.90 200 1.2 0.05 0.3 0.1 R40/WR229 FDP/FDM more »
VT40WRJLPPA 3.22-4.90 200 1.2 0.05 0.3 0.1 R40/WR229 FDP/FDM more »
VT40WRJUPPA 3.22-4.90 200 1.2 0.05 0.3 0.1 R40/WR229 FDP/FDM more »
VT48WRJIPPC 3.94-5.99 200 1.2 0.05 0.3 0.1 R48/WR187 FDP/FDM more »
VT48WRJLPPC 3.94-5.99 200 1.2 0.05 0.3 0.1 R48/WR187 FDP/FDM more »
VT48WRJUPPC 3.94-5.99 200 1.2 0.05 0.3 0.1 R48/WR187 FDP/FDM more »
VT58WRJIPPC 4.64-7.05 300 1.25 0.05 0.25 0.1 R58/WR159 FDP/FDM more »
VT58WRJLPPC 4.64-7.05 300 1.25 0.05 0.25 0.1 R58/WR159 FDP/FDM more »
VT58WRJUPPC 4.64-7.05 300 1.25 0.05 0.25 0.1 R58/WR159 FDP/FDM more »
VT70WRJIPPC 5.38-8.17 700 1.25 0.05 0.25 0.1 R70/WR137 FDP/FDM more »
VT70WRJLPPC 5.38-8.17 700 1.25 0.05 0.25 0.1 R70/WR137 FDP/FDM more »
VT70WRJUPPC 5.38-8.17 700 1.25 0.05 0.25 0.1 R70/WR137 FDP/FDM more »
VT84WRJIPPC 6.57-9.99 300 1.2 0.05 0.3 0.1 R84/WR112 FBP/FBM/FBE more »
VT84WRJLPPC 6.57-9.99 300 1.2 0.05 0.3 0.1 R84/WR112 FBP/FBM/FBE more »
VT84WRJUPPC 6.57-9.99 300 1.2 0.05 0.3 0.1 R84/WR112 FBP/FBM/FBE more »
VT100WRJIPPC 8.2-12.4 300 1.2 0.05 0.3 0.1 R100/WR90 FBP/FBM/FBE more »
VT100WRJLMMA 8.2-12.4 300 1.2 0.05 0.3 0.1 R100/WR90 FBP/FBM/FBE more »
VT100WRJUMMA 8.2-12.4 300 1.2 0.05 0.3 0.1 R100/WR90 FBP/FBM/FBE more »
VT120WRJIPMA 9.84-15.0 500 1.25 0.05 0.3 0.1 R120/WR75 FBP/FBM/FBE more »
VT120WRJLPPC 9.84-15.0 500 1.25 0.05 0.3 0.1 R120/WR75 FBP/FBM/FBE more »
VT120WRJUPPC 9.84-15.0 500 1.25 0.05 0.3 0.1 R120/WR75 FBP/FBM/FBE more »
VT140WRJIPPC 11.9-18.0 1000 1.3 0.05 0.4 0.1 R140/WR62 FBP/FBM/FBE more »
VT140WRJLPPA 11.9-18.0 1000 1.3 0.05 0.4 0.1 R140/WR62 FBP/FBM/FBE more »
VT140WRJUPPC 11.9-18.0 1000 1.3 0.05 0.4 0.1 R140/WR62 FBP/FBM/FBE more »
VT180WRJIPPC 14.5-22.0 1000 1.3 0.05 0.4 0.1 R180/WR51 FBP/FBM/FBE more »
VT180WRJLPPC 14.5-22.0 1000 1.3 0.05 0.4 0.1 R180/WR51 FBP/FBM/FBE more »
VT180WRJUPPC 14.5-22.0 1000 1.3 0.05 0.4 0.1 R180/WR51 FBP/FBM/FBE more »
VT220WRJIPPC 17.6-26.7 2000 1.4 0.05 1 0.1 R220/WR41 FBP/FBM/FBE more »
VT220WRJLPPC 17.6-26.7 2000 1.4 0.05 1 0.1 R220/WR41 FBP/FBM/FBE more »
VT220WRJUPPC 17.6-26.7 2000 1.4 0.05 1 0.1 R220/WR41 FBP/FBM/FBE more »
VT260WRJIPPC 21.7-33.0 2000 1.4 0.05 1 0.1 R260/WR34 FBP/FBM/FBE more »
VT260WRJLPPC 21.7-33.0 2000 1.4 0.05 1 0.1 R260/WR34 FBP/FBM/FBE more »
VT260WRJUPPC 21.7-33.0 2000 1.4 0.05 1 0.1 R260/WR34 FBP/FBM/FBE more »
VT320WRJIPPC 26.3-40.0 2000 1.4 0.05 1 0.1 R320/WR28 FBP/FBM/FBE more »
VT320WRJLPPC 26.3-40.0 2000 1.4 0.05 1 0.1 R320/WR28 FBP/FBM/FBE more »
VT320WRJUPPC 26.3-40.0 2000 1.4 0.05 1 0.1 R320/WR28 FBP/FBM/FBE more »

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
