WG Single Channel Rotary Joint
Rotary Joints (rotary couplers) are used to transmit microwave energy from stationary lines to rotating lines. The rotary joint is an electro-mechanical device with RF performance dependent upon rigorous electrical and mechanical design. Available styles are defined by physical geometry as follows:

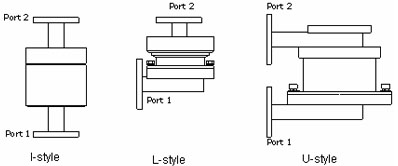

I-style - Two in-line arms both collinear with the axis of rotation.
L-style - One arm is perpendicular to the axis of rotation.
U-style - Both arms are perpendicular to the axis of rotation.

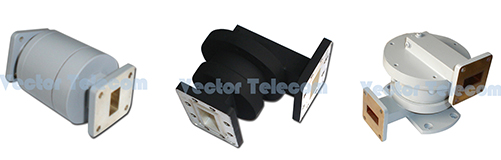

WG Single Channel Rotary JointWG Single Channel Rotary Joint
Download WG Single Channel Rotary Joint Catalogue »
WG Single Channel Rotary Joint Product Range
 MODEL NO  FREQ RANGE  OPERATING BANDWIDTH***  VSWR  VSWR WOW  IL  IL WOW  WG TYPE (IEC/EIA)  FLANGE TYPE  PDF Datasheet
  (GHz) Max Max (dB) Max (dB)
VT32WRJI 2.60-3.95 15% 1.2 0.05 0.25 0.1 R32/WR284 FDP/FDM more »
VT32WRJL 2.60-3.95 15% 1.2 0.05 0.25 0.1 R32/WR284 FDP/FDM more »
VT32WRJU 2.60-3.95 15% 1.2 0.05 0.25 0.1 R32/WR284 FDP/FDM more »
VT40WRJI 3.22-4.90 15% 1.2 0.05 0.25 0.1 R40/WR229 FDP/FDM more »
VT40WRJL 3.22-4.90 15% 1.2 0.05 0.25 0.1 R40/WR229 FDP/FDM more »
VT40WRJU 3.22-4.90 15% 1.2 0.05 0.25 0.1 R40/WR229 FDP/FDM more »
VT48WRJI 3.94-5.99 15% 1.2 0.05 0.25 0.1 R48/WR187 FDP/FDM more »
VT48WRJL 3.94-5.99 15% 1.2 0.05 0.25 0.1 R48/WR187 FDP/FDM more »
VT48WRJU 3.94-5.99 15% 1.2 0.05 0.25 0.1 R48/WR187 FDP/FDM more »
VT58WRJI 4.64-7.05 15% 1.2 0.05 0.25 0.1 R58/WR159 FDP/FDM more »
VT58WRJL 4.64-7.05 15% 1.2 0.05 0.25 0.1 R58/WR159 FDP/FDM more »
VT58WRJU 4.64-7.05 15% 1.2 0.05 0.25 0.1 R58/WR159 FDP/FDM more »
VT70WRJI 5.38-8.17 15% 1.2 0.05 0.25 0.1 R70/WR137 FDP/FDM more »
VT70WRJL 5.38-8.17 15% 1.2 0.05 0.25 0.1 R70/WR137 FDP/FDM more »
VT70WRJU 5.38-8.17 15% 1.2 0.05 0.25 0.1 R70/WR137 FDP/FDM more »
VT84WRJI 6.57-9.99 15% 1.2 0.05 0.3 0.1 R84/WR112 FBP/FBM/FBE more »
VT84WRJL 6.57-9.99 15% 1.2 0.05 0.3 0.1 R84/WR112 FBP/FBM/FBE more »
VT84WRJU 6.57-9.99 15% 1.2 0.05 0.3 0.1 R84/WR112 FBP/FBM/FBE more »
VT100WRJI 8.2-12.4 15% 1.2 0.05 0.3 0.1 R100/WR90 FBP/FBM/FBE more »
VT100WRJL 8.2-12.4 15% 1.2 0.05 0.3 0.1 R100/WR90 FBP/FBM/FBE more »
VT100WRJU 8.2-12.4 15% 1.2 0.05 0.3 0.1 R100/WR90 FBP/FBM/FBE more »
VT120WRJI 9.84-15.0 15% 1.2 0.05 0.3 0.1 R120/WR75 FBP/FBM/FBE more »
VT120WRJL 9.84-15.0 15% 1.2 0.05 0.3 0.1 R120/WR75 FBP/FBM/FBE more »
VT120WRJU 9.84-15.0 15% 1.2 0.05 0.3 0.1 R120/WR75 FBP/FBM/FBE more »
VT140WRJI 11.9-18.0 15% 1.2 0.05 0.3 0.1 R140/WR62 FBP/FBM/FBE more »
VT140WRJL 11.9-18.0 15% 1.2 0.05 0.3 0.1 R140/WR62 FBP/FBM/FBE more »
VT140WRJU 11.9-18.0 15% 1.2 0.05 0.3 0.1 R140/WR62 FBP/FBM/FBE more »
VT180WRJI 14.5-22.0 15% 1.2 0.05 0.3 0.1 R180/WR51 FBP/FBM/FBE more »
VT180WRJL 14.5-22.0 15% 1.25 0.05 0.3 0.1 R180/WR51 FBP/FBM/FBE more »
VT180WRJU 14.5-22.0 15% 1.25 0.05 0.3 0.1 R180/WR51 FBP/FBM/FBE more »
VT220WRJII 17.6-26.7 15% 1.25 0.05 0.5 0.1 R220/WR41 FBP/FBM/FBE more »
VT220WRJL 17.6-26.7 15% 1.25 0.05 0.5 0.1 R220/WR41 FBP/FBM/FBE more »
VT220WRJU 17.6-26.7 15% 1.25 0.05 0.5 0.1 R220/WR41 FBP/FBM/FBE more »
VT260WRJI 21.7-33.0 15% 1.25 0.05 0.5 0.1 R260/WR34 FBP/FBM/FBE more »
VT260WRJL 21.7-33.0 15% 1.25 0.05 0.5 0.1 R260/WR34 FBP/FBM/FBE more »
VT260WRJU 21.7-33.0 15% 1.25 0.05 0.5 0.1 R260/WR34 FBP/FBM/FBE more »
VT320WRJI 26.3-40.0 15% 1.25 0.05 0.5 0.1 R320/WR28 FBP/FBM/FBE more »
VT320WRJL 26.3-40.0 15% 1.25 0.05 0.5 0.1 R320/WR28 FBP/FBM/FBE more »
VT320WRJU 26.3-40.0 15% 1.25 0.05 0.5 0.1 R320/WR28 FBP/FBM/FBE more »

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.

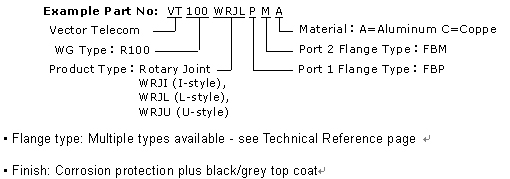

[Ordering Information]
