Broadwall Directional Coupler - 3 WG Ports
| Vector Telecom manufactures a standard product line of multi-hole broadwall directional couplers covering a wide frequency range. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm. Directional couplers are typically used for power sampling, frequency monitoring, especially in the test setups where power reflection measurements are required. Additional sizes and special configurations are available on request. |  |  |
Download Broadwall Directional Coupler - 3 WG Ports Catalogue »
Broadwall Directional Coupler - 3 WG Ports Product Range |
| MODEL NO |
FREQ RANGE |
VSWR |
COUPLING*** |
DIRECTIVITY |
WG TYPE (IEC/EIA) |
FLANGE TYPE |
MATERIAL |
PDF Datasheet |
| |
(GHz) |
Max |
(dB) |
(dB) Min |
|
|
|
| VT9WCXPPPA
|
0.75-1.15 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R9/WR975 |
FDP/FDM |
Al |
|
| VT12WCXPPPA
|
0.96-1.46 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R12/WR770 |
FDP/FDM |
Al |
|
| VT14WCXPPPA
|
1.13-1.73 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R14/WR650 |
FDP/FDM |
Al |
|
| VT18WCXPPPA
|
1.45-2.20 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R18/WR510 |
FDP/FDM |
Al |
|
| VT22WCXPPPA
|
1.72-2.61 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R22/WR430 |
FDP/FDM |
Al |
|
| VT26WCXPPPA
|
2.17-3.30 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R26/WR340 |
FDP/FDM |
Al |
|
| VT32WCXPPPA
|
2.60-3.95 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R32/WR284 |
FDP/FDM |
Al |
|
| VT40WCXPPPA
|
3.22-4.90 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R40/WR229 |
FDP/FDM |
Al |
|
| VT48WCXPPPA
|
3.94-5.99 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R48/WR187 |
FDP/FDM |
Al |
|
| VT58WCXPPPA
|
4.64-7.05 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R58/WR159 |
FDP/FDM |
Al |
|
| VT70WCXPPPA
|
5.38-8.17 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R70/WR137 |
FDP/FDM |
Al |
|
| VT84WCXPPPC
|
6.57-9.99 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R84/WR112 |
FBP/FBM/FBE |
Cu |
|
| VT100WCXPPPC
|
8.20-12.40 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R100/WR90 |
FBP/FBM/FBE |
Cu |
|
| VT120WCXPPPC
|
9.84-15.0 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R120/WR75 |
FBP/FBM/FBE |
Cu |
|
| VT140WCXPPPC
|
11.9-18.0 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R140/WR62 |
FBP/FBM/FBE |
Cu |
|
| VT180WCXPPPC
|
14.5-22.0 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R180/WR51 |
FBP/FBM/FBE |
Cu |
|
| VT220WCXPPPC
|
17.6-26.7 |
1.1(Main),1.5(Sec) |
3~60 |
30~40 |
R220/WR42 |
FBP/FBM/FBE |
Cu |
|
| VT260WCXPPPC
|
21.7-33.0 |
1.1(Main),1.5(Sec) |
3~60 |
30~40 |
R260/WR34 |
FBP/FBM/FBE |
Cu |
|
| VT320WCXPPPC
|
26.5-40.0 |
1.1(Main),1.5(Sec) |
3~60 |
30~40 |
R320/WR28 |
FBP/FBM/FBE |
Cu |
|
| VT400WCXPPPC
|
32.9-50.1 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R400/WR22 |
FUGP |
Cu |
|
| VT500WCXPPPC
|
39.2-59.6 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R500/WR19 |
FUGP |
Cu |
|
| VT620WCXPPPC
|
49.8-75.8 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R620/WR15 |
FUGP |
Cu |
|
| VT740WCXPPPC
|
60.5-91.9 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R740/WR12 |
FUGP |
Cu |
|
| VT900WCXPPPC
|
73.8-112 |
1.1(Main),1.25(Sec) |
3~60 |
30~40 |
R900/WR10 |
FUGP |
Cu |
|

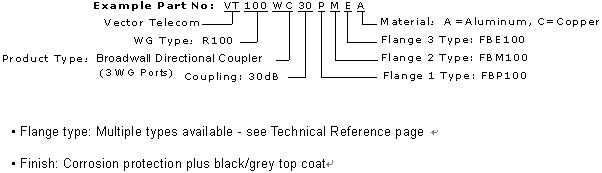

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Nominal Accuracy: ?± 0.7dB, Frequency Sensitivity: ?± 1dB| [Ordering Information] |  |
|
