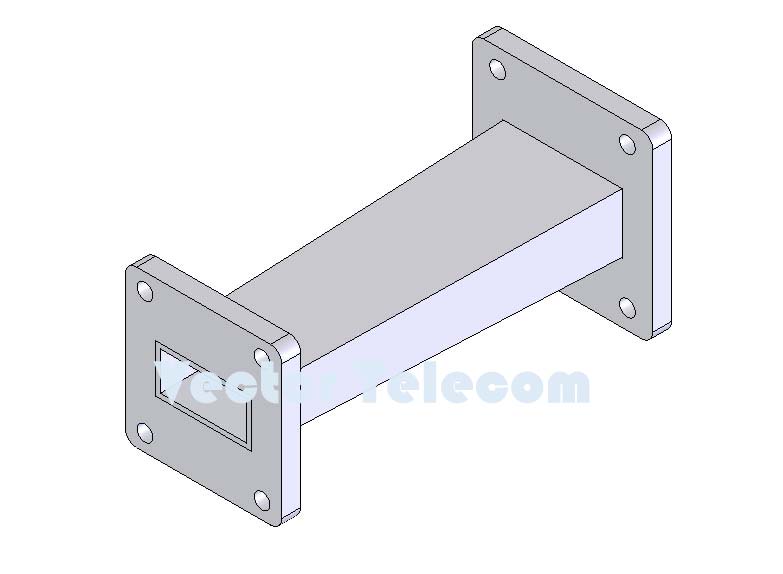

Waveguide Transition - VT84100WA100PPC
WR112 to WR90 Waveguide Transition
MODEL NO VT84100WA100PPC
FREQ RANGE (GHz) 8.20-9.99
VSWR Max 1.1
LENGTH (mm) 100
PORT 1 WG TYPE (IEC/EIA) R84/WR112
PORT 2 WG TYPE (IEC/EIA) R100/WR90
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
