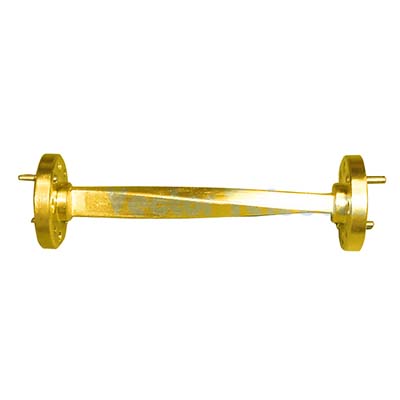

Rectangle WG Twist - VT620WTA50PPCWR15 Waveguide Twist
MODEL NO VT620WTA50PPC
FREQ RANGE (GHz) 49.8-75.8
VSWR Max 1.15
FLANGE TYPE FUGP
MATERIAL Cu
WG TYPE (IEC/EIA) R620/WR15
MINIMUM LENGTH (mm) 50

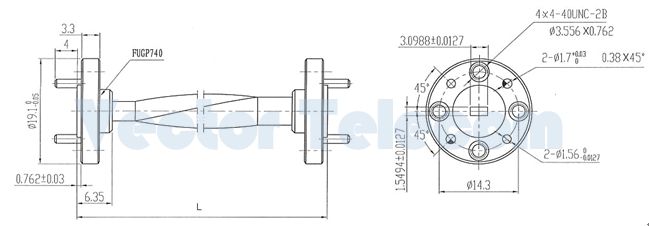

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
