Waveguide Transition - VT620740WA50PPC

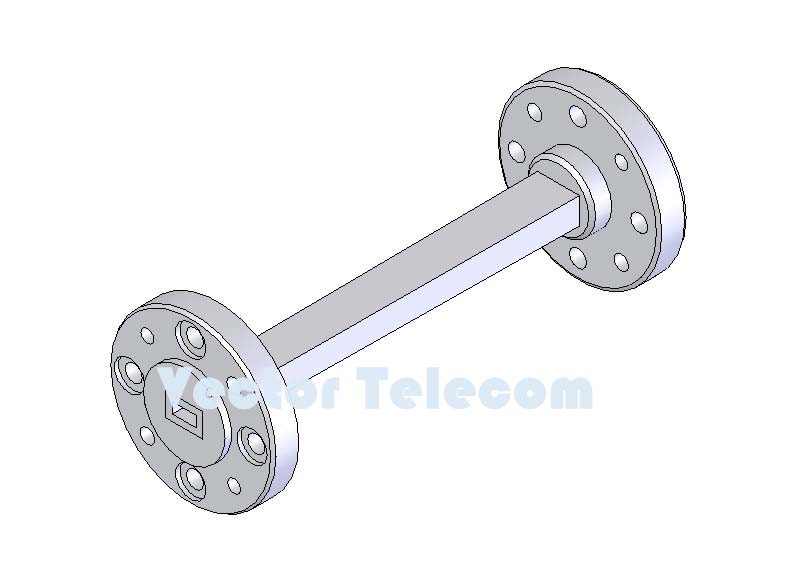

WR15 to WR12 Waveguide Transition
MODEL NO VT620740WA50PPC
FREQ RANGE (GHz) 60.5-75.8
VSWR Max 1.15
LENGTH (mm) 50
PORT 1 WG TYPE (IEC/EIA) R620/WR15
PORT 2 WG TYPE (IEC/EIA) R740/WR12
FLANGE TYPE FUGP
MATERIAL Cu

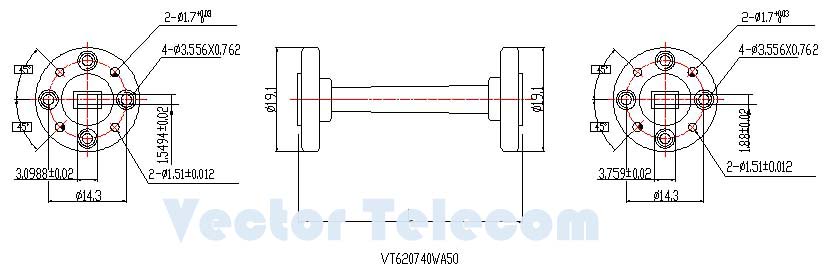

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
