Waveguide Twist - VT58WTA170PPC
WR159 Waveguide Twist
MODEL NO VT58WTA170PPC
FREQ RANGE (GHz) 4.64-7.05
VSWR Max 1.1
MINIMUM LENGTH (mm) 170
WG TYPE (IEC/EIA) R58/WR159
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

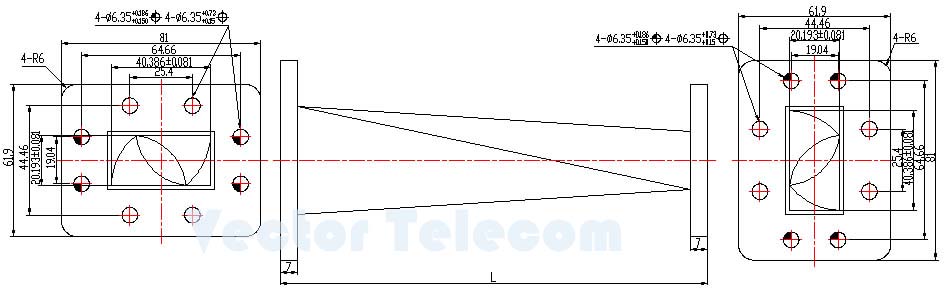

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.

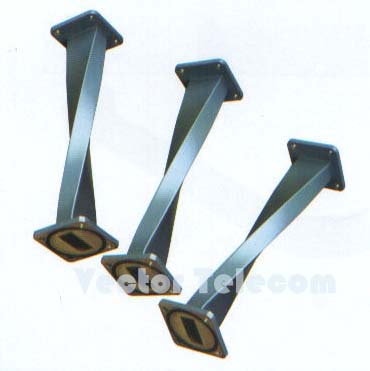

Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
