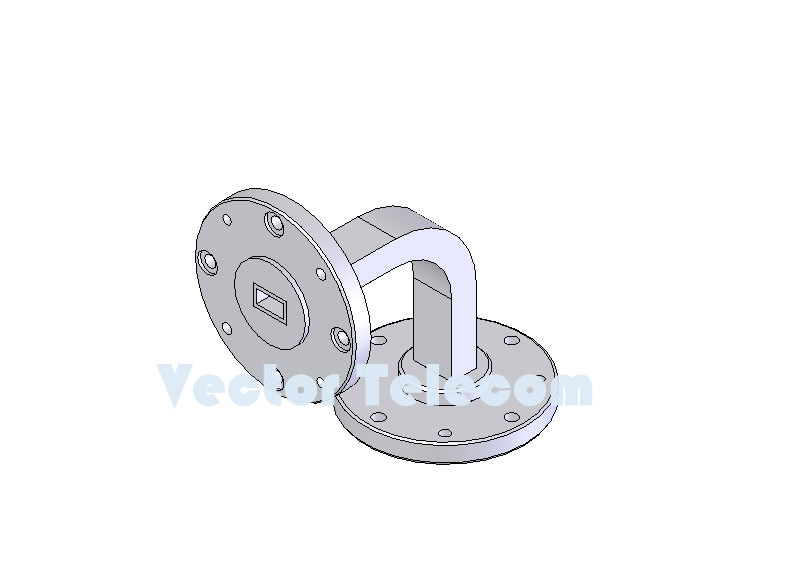

Waveguide Bend - VT500WEB25X25PPC
WR18 E-bend
MODEL NO VT500WEB25X25PPC
FREQ RANGE (GHz) 39.2-59.6
VSWR Max 1.2
STD DIMENSIONS A*B*R (mm)*** 25*25*10
WG TYPE (IEC/EIA) R500/WR19
FLANGE TYPE FUGP
MATERIAL Cu

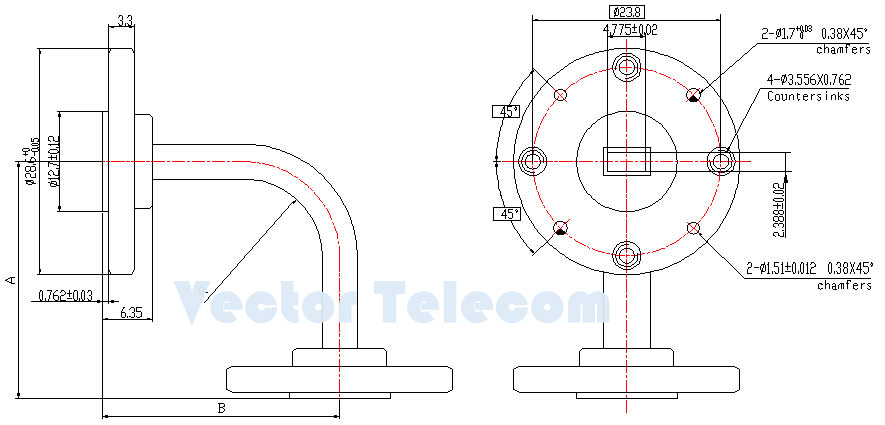

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
