Rectangle WG Straight - VT4WAL1000PPAWR2100 Straight Waveguide
MODEL NO VT4WAL1000PPA
FREQ RANGE (GHz) 0.35-0.53
VSWR Max 1.15
FLANGE TYPE FDP/FDM
MATERIAL Al
WG TYPE (IEC/EIA) R4/WR2100
LENGTH (mm) 1000

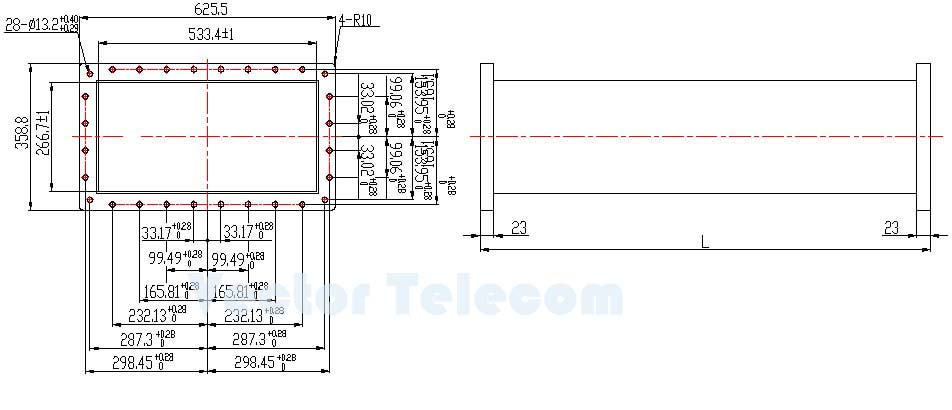

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
