Crossguide Directional Coupler - VT320WL+CWR28 Crossguide Directional Coupler
| MODEL NO |
VT320WL+C |
| FREQ RANGE (GHz) |
26.5-40.0 |
| VSWR Max |
1.05(Main),1.10(Sec) |
| SIZE H*W*L (mm) |
50*50*70 |
| FLANGE TYPE |
FBP/FBM/FBE |
| WAVEGUIDE TYPE |
WR28 |
| CONNECTOR |
- |
| MATERIAL |
Al/Cu |
| COUPLING LEVEL (dB) |
20-60 |
| DIRECTIVITY (dB) Min |
18 |

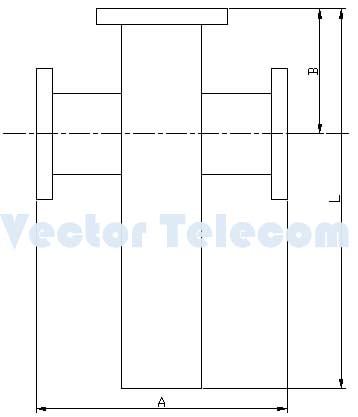

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |

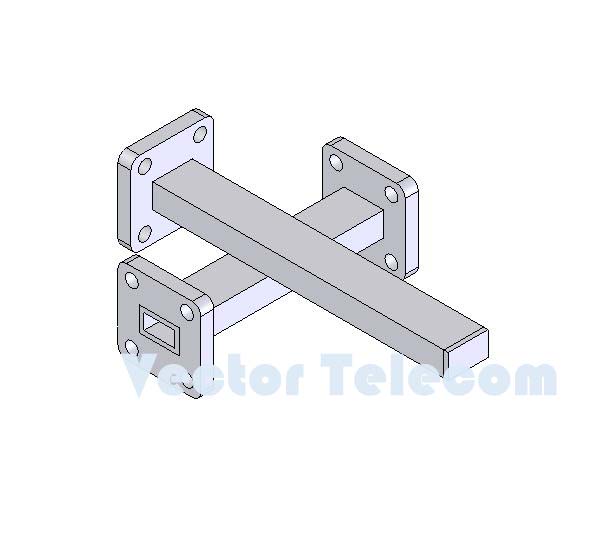

Crossguide couplers are typically used for power sampling, frequency monitoring and standing wave testing. This is a three-ports configuration cross coupler. The minimum directivity is 18 dB. The coupling level can be custom made from 20 dB to 60 dB. The flange type, connector type and sizes can be custom made as per customer's specific requirements.
| |
