Waveguide Transition - VT260320WA50PPC

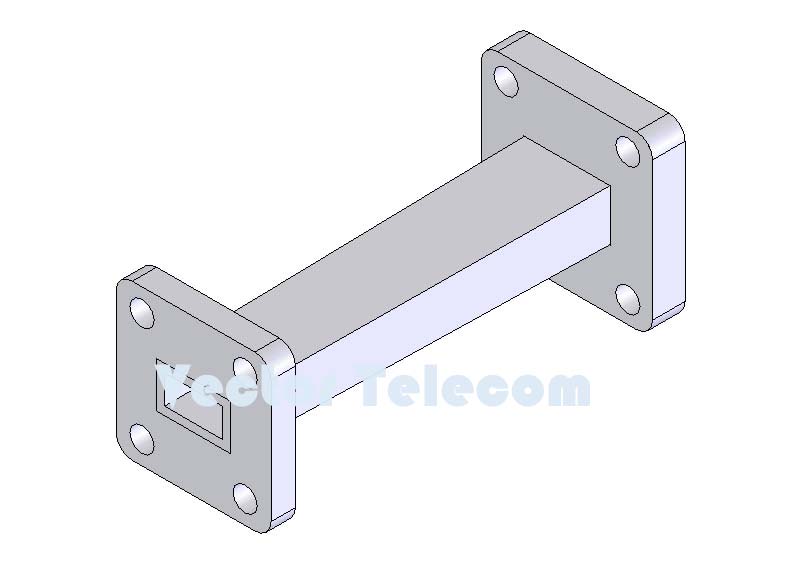

WR34 to WR28 Waveguide Transition
MODEL NO VT260320WA50PPC
FREQ RANGE (GHz) 26.3-33.0
VSWR Max 1.1
LENGTH (mm) 50
PORT 1 WG TYPE (IEC/EIA) R260/WR34
PORT 2 WG TYPE (IEC/EIA) R320/WR28
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

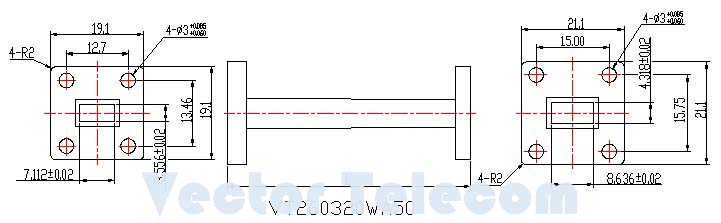

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
