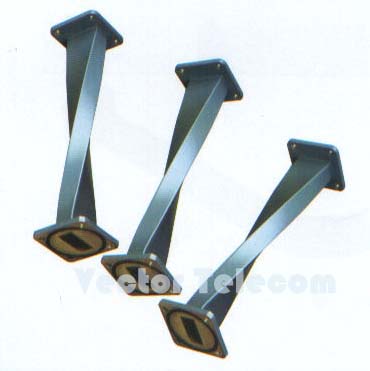

Waveguide Twist - VT22WTA800PPA
WR430 Waveguide Twist
MODEL NO VT22WTA800PPA
FREQ RANGE (GHz) 1.72-2.61
VSWR Max 1.15
MINIMUM LENGTH (mm) 800
WG TYPE (IEC/EIA) R22/WR430
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

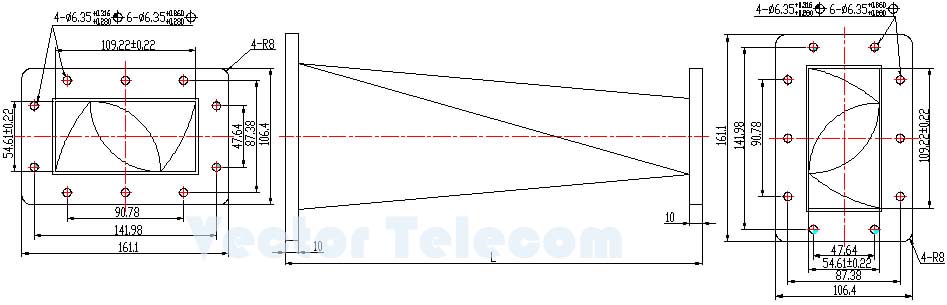

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
