Straight Waveguide - VT22WAL300PPA
WR430 Straight Waveguide
MODEL NO VT22WAL300PPA
FREQ RANGE (GHz) 1.72-2.61
VSWR Max 1.05
LENGTH (mm) 300
WG TYPE (IEC/EIA) R22/WR430
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

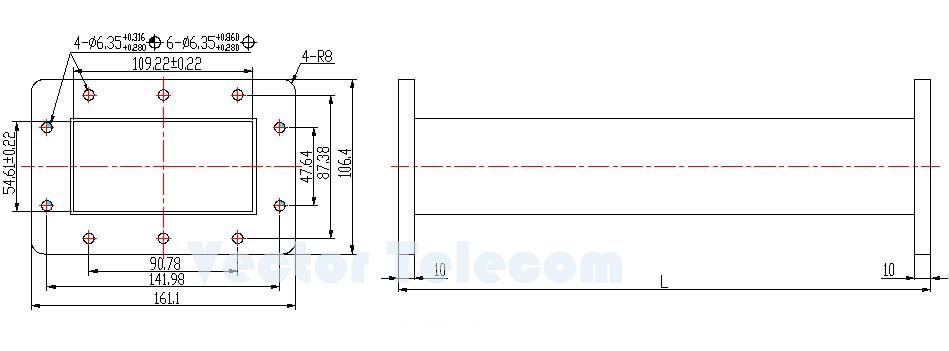

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
