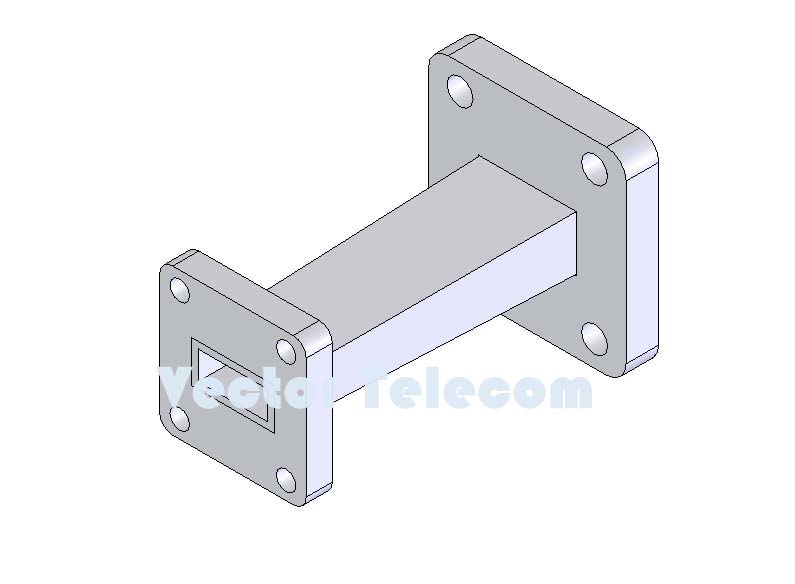

Rectangle WG Transition - VT180220WA50PPCWR51 to WR42 Waveguide Transition
MODEL NO VT180220WA50PPC
FREQ RANGE (GHz) 17.6-22.0
VSWR Max 1.1
LENGTH (mm) 50
PORT 1 WG TYPE (IEC/EIA) R180/WR51
PORT 2 WG TYPE (IEC/EIA) R220/WR42
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
