WG to Coaxial Adapter - Right Angle - VT100WCASKPCWR90 Waveguide to Coaxial Adapter
| MODEL NO |
VT100WCASKPC In Stock! |
| FREQ RANGE (GHz) |
8.20-12.50 |
| VSWR Max |
1.25 |
| FLANGE TYPE |
FBP/FBE/FBM |
| CONNECTOR |
Type N, SMA, TNC |
| MATERIAL |
Al/Cu |
| WG TYPE (IEC/EIA) |
R100/WR90 |
| AVG POWER (W) |
50 |

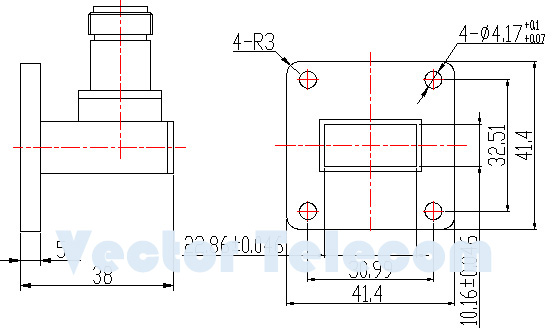

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
The adapters are ideal choices where the waveguide to coaxial transitions are required in microwave measurement, equipments, systems and engineerings.WCA - Waveguide to Coaxial Adapter. N - Connector type is N type. The flange type, connector and length can be custom made as per customer's specific requirements.
| |
