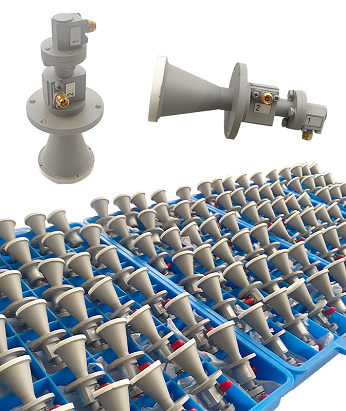

Vector Telecom is pleased to recommend the Dual-Polarized Conical Horn Antenna, operating in the frequence range of 33-37 GHz, with a relative bandwidth of 11.4%. It employs an orthogonal mode configuration to achieve high gain, high isolation and low sidelobe performance.
The orthogonal-mode conical horn antenna incorporates an Ortho-Mode Transducer (OMT), which separates two different polarized waves within the circular waveguide system, together with the conical horn forming a dual-linear polarized antenna.
The dual-polarized horn antenna is a millimeter-wave antenna designed for simulated anechoic chamber systems used in millimeter-wave device testing.
Part No: VT330370DPHA18K
Main Specs
Frequency Range
33-37 GHz
VSWR (Max)
1.5
Polarization Type
Dual-Linear Polarization
Isolation (Min)
30 dB
Connector Type
2.92-Female
Gain (Min)
18 dB @ 33-37GHz
Main Lobe Width
10-30°
Sidelobe Suppression (Min)
13 dB (E-plane), 20 dB (H-plane)

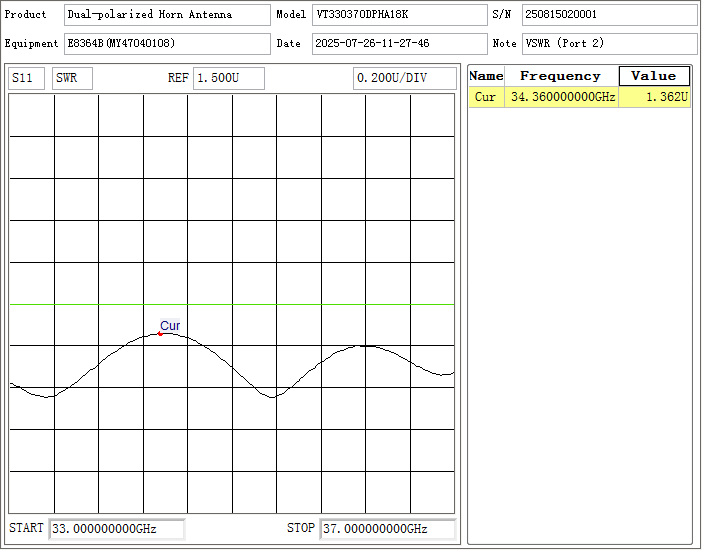

Tested VSWR Curve

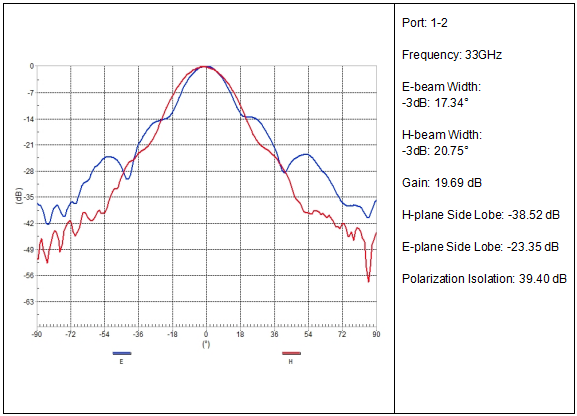

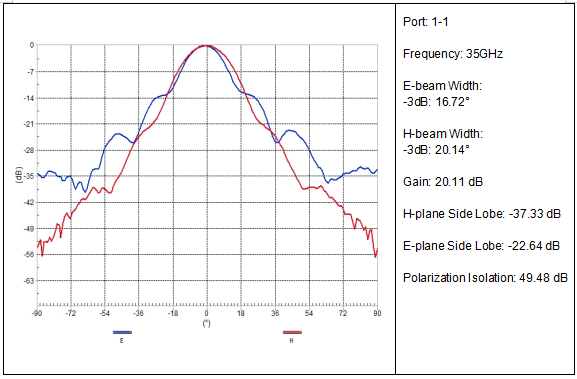

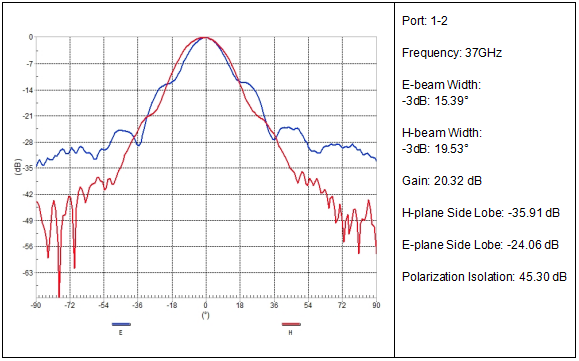

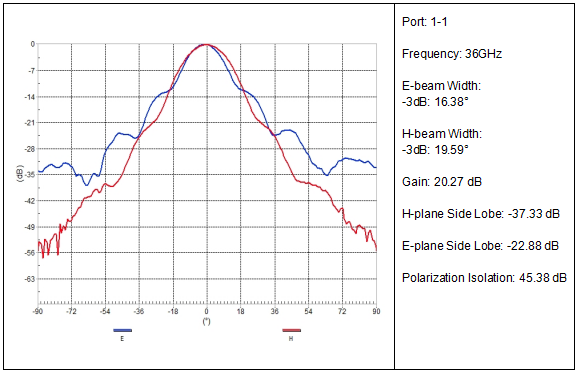

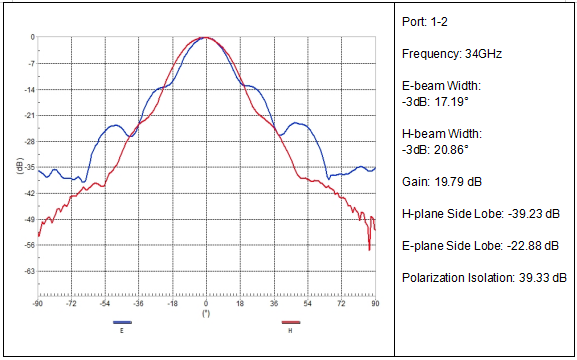

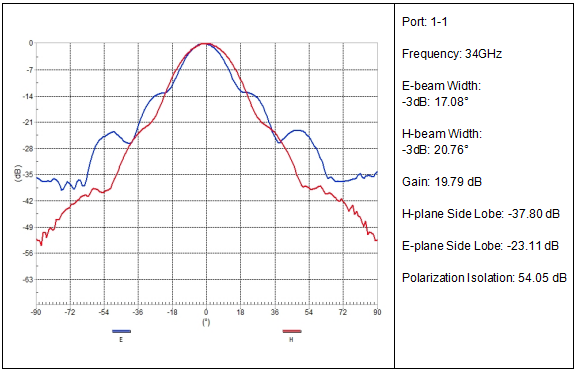

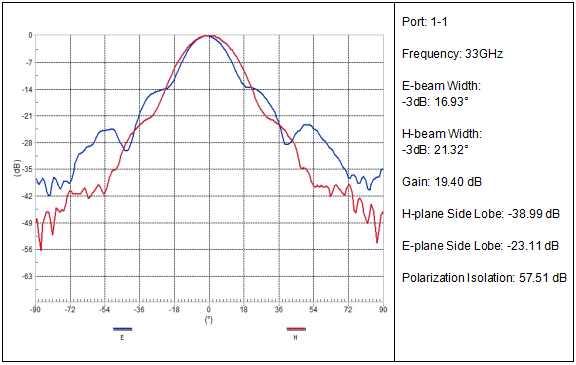

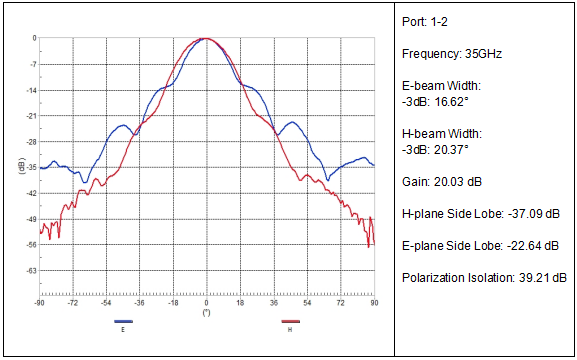

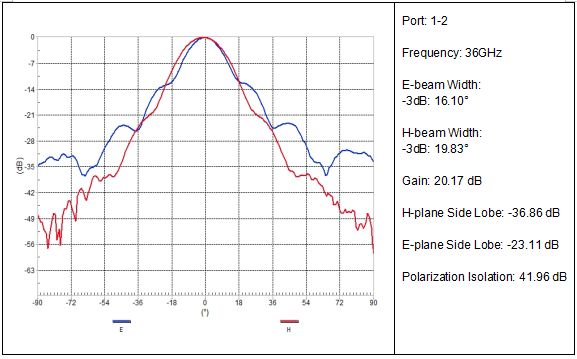

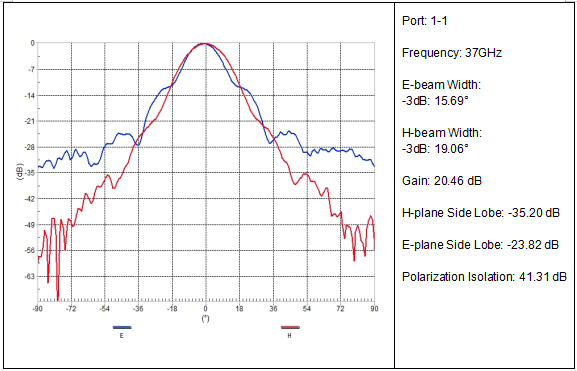

Antenna Patterns
