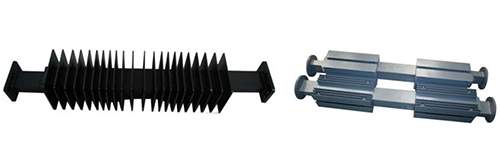

Waveguide High Power Fixed Attenuator
Vector Telecom offers a series of rectangular waveguide attenuators. Typical Attenuation values are 3dB, 6dB, 10dB, 20dB and 30dB (other attenuation values available, consult sales engineers for details). The assembly construction includes a precision element for optimum electrical performance, but note that Attenuation vs. Frequency can vary greatly depending on the attenuation at a given frequency. Waveguide Fixed Attenuators with normal and high power units are also available. For more information feel free to call us and discuss your needs with one of our sales engineers.Waveguide High Power Fixed Attenuator
Waveguide High Power Fixed Attenuator
Download Waveguide High Power Fixed Attenuator Catalogue »
Waveguide High Power Fixed Attenuator Product Range
  (GHz) Max (W) (dB)
VT48WCHPFA10PPA250 5.4-5.9 1.25 50 2013-10-20 R48/WR187 FDP/FDM Al/Cu
VT84WCHPFA60PPC200 5.85-7.025 1.2 500 55 R70/WR137 FDP/FDM Al/Cu
VT100WHPFA9PPC400 8.5-9.6 1.1 250 10 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WHPFA30PPC50 9.84-15.0 1.15 50 10/20/30 R120/WR75 FBP/FBM/FBE Al/Cu
VT740WHPFA30PP30 14.5-15.5 1.25 100 40 R140/WR62 FBP/FBM/FBE Al/Cu
VT320WHPFA20PPC20 26.3-40.0 1.25 20 10 R320/WR28 FBP/FBM/FBE Al/Cu

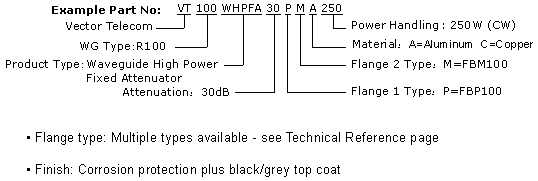

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Nominal Attenuation Accuracy: ± 0.5dB, Frequency Sensitivity: ± 0.7dB. Customer must choose the attenuation value appropriate for application (10dB, 20dB, 30dB, 40dB, 50dB, 60dB, 70dB) and insert it in the part number where Attenuation value is listed.
[Ordering Information]
