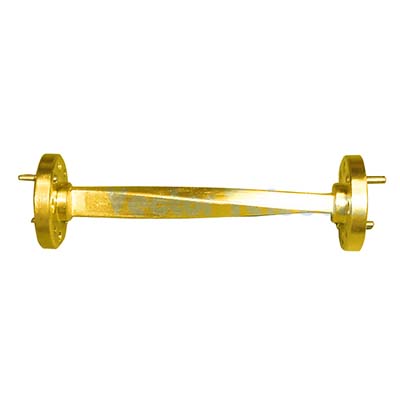

Waveguide Twist - VT900WTA50PPC
WR10 Waveguide Twist
MODEL NO VT900WTA50PPC
FREQ RANGE (GHz) 73.8-112
VSWR Max 1.15
MINIMUM LENGTH (mm) 50
WG TYPE (IEC/EIA) R900/WR10
FLANGE TYPE FUGP
MATERIAL Cu

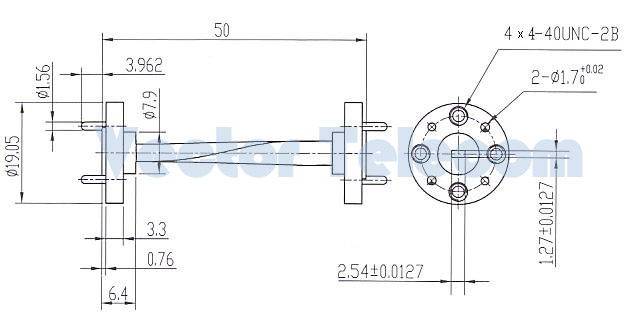

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
