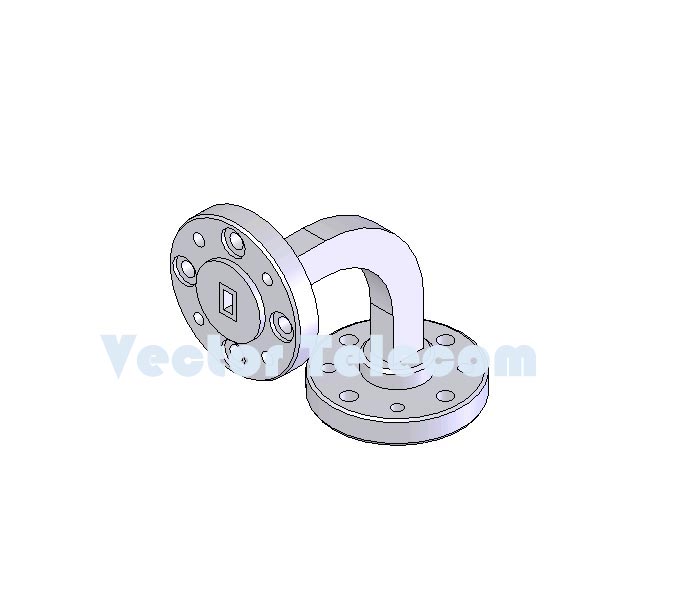

Waveguide Bend - VT900WHB25X25PPC
WR10 H-bend
MODEL NO VT900WHB25X25PPC
FREQ RANGE (GHz) 73.8-100
VSWR Max 1.2
STD DIMENSIONS A*B*R (mm)*** 25*25*10
WG TYPE (IEC/EIA) R900/WR10
FLANGE TYPE FUGP
MATERIAL Cu

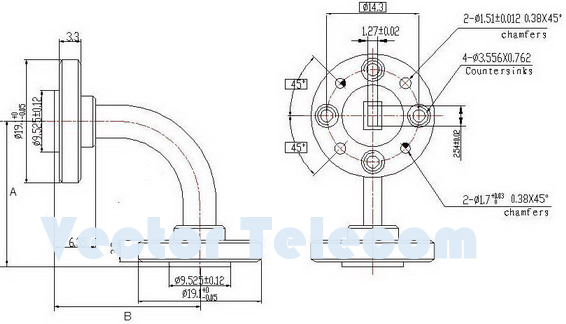

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
