Rectangle WG Straight - VT8WAL1000PPAWR1150 Straight Waveguide
MODEL NO VT8WAL1000PPA
FREQ RANGE (GHz) 0.64-0.98
VSWR Max 1.1
FLANGE TYPE FDP/FDM
MATERIAL Al
WG TYPE (IEC/EIA) R8/WR1150
LENGTH (mm) 1000

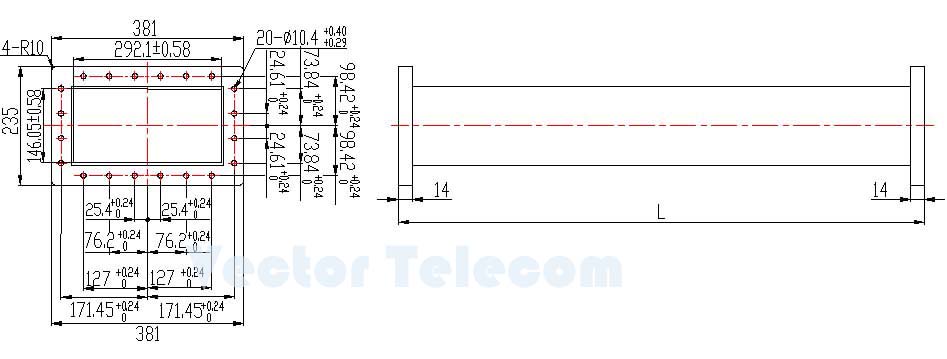

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
