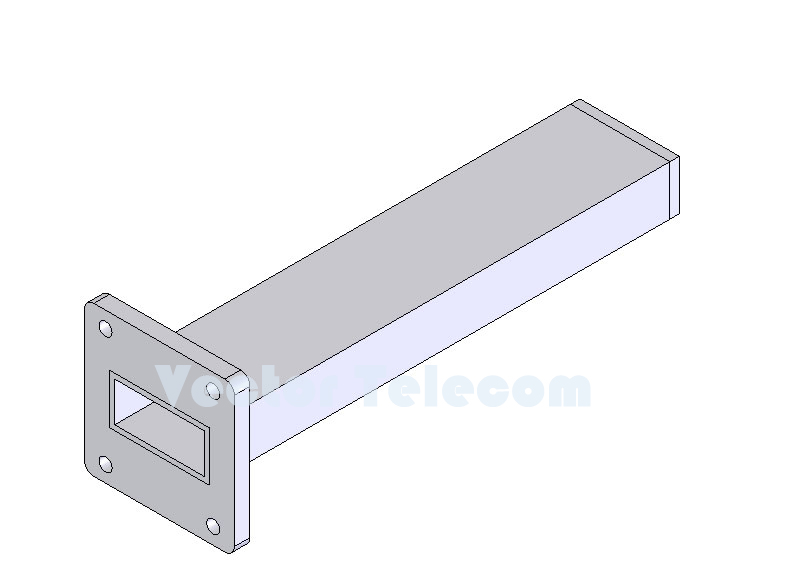

WG Low Power Termination - VT84WL1.03PCWR112 Waveguide Low Power Termination
MODEL NO VT84WL1.03PC In Stock!
FREQ RANGE (GHz) 6.57-9.99
VSWR Max 1.03
AVG POWER (W) 5
LENGTH (L) (mm) 150
WG TYPE (IEC/EIA) R84/WR112
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

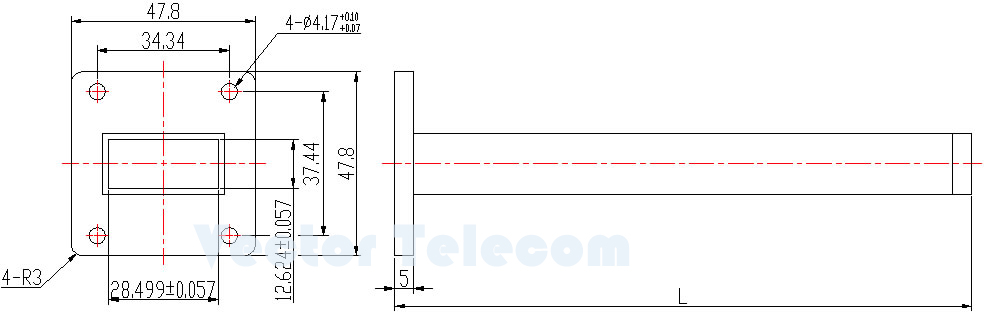

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.03 over the full waveguide bandwidth.
