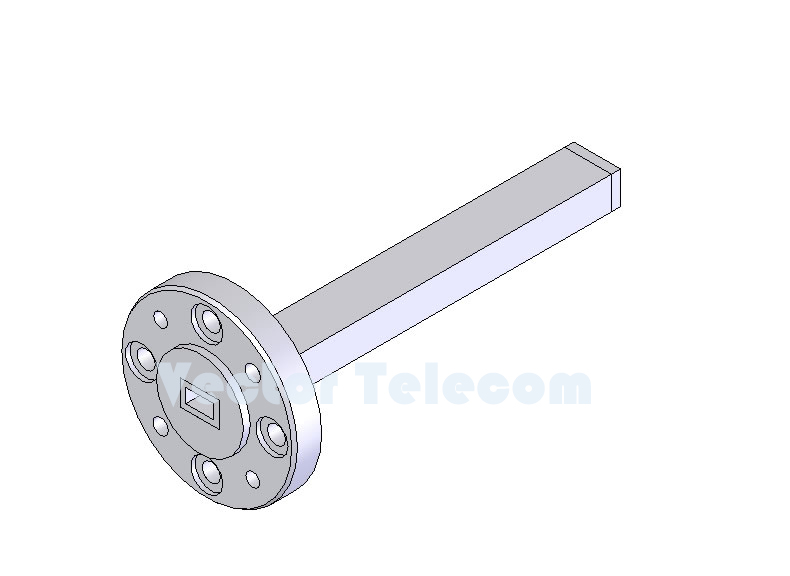

WG Low Power Termination - VT740WL1.15PCWR12 Waveguide Low Power Termination
MODEL NO VT740WL1.15PC In Stock!
FREQ RANGE (GHz) 60.5-91.9
VSWR Max 1.15
AVG POWER (W) 0.5
LENGTH (L) (mm) 30
WG TYPE (IEC/EIA) R740/WR12
FLANGE TYPE FUGP
MATERIAL Cu

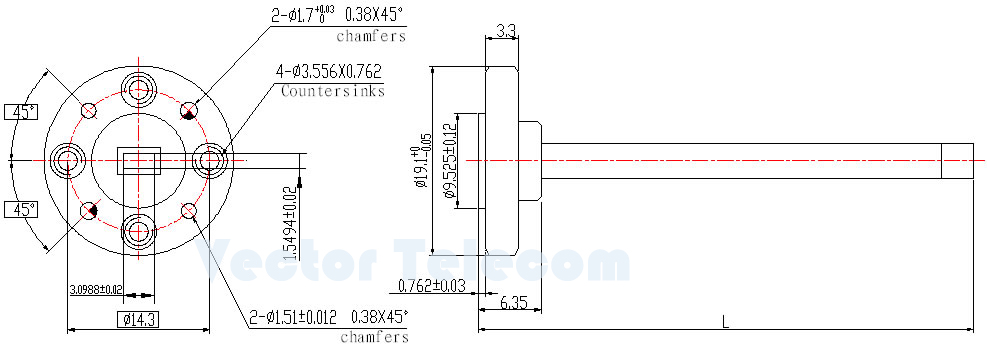

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.15 over the full waveguide bandwidth.
