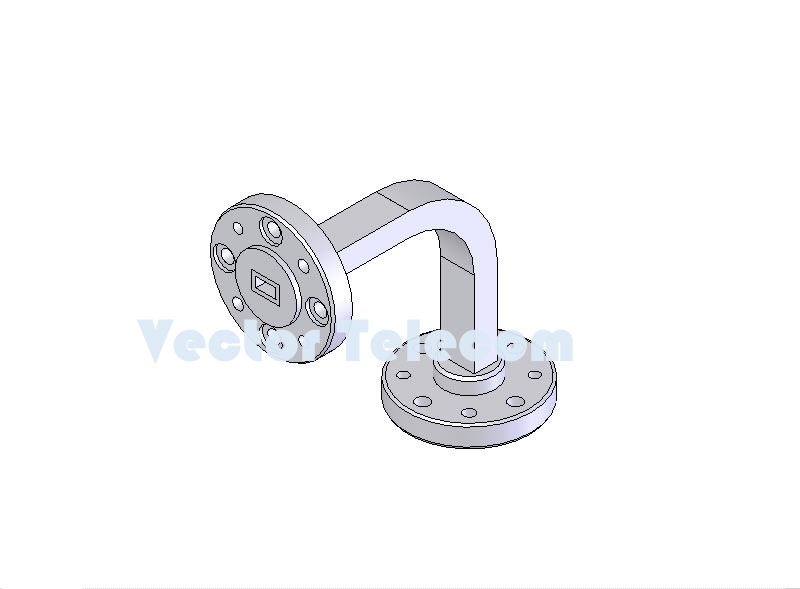

Waveguide Bend - VT740WEB20X20PPC
WR12 E-bend
MODEL NO VT740WEB20X20PPC
FREQ RANGE (GHz) 60.5-91.9
VSWR Max 1.2
STD DIMENSIONS A*B*R (mm)*** 20*20*10
WG TYPE (IEC/EIA) R740/WR12
FLANGE TYPE FUGP
MATERIAL Cu

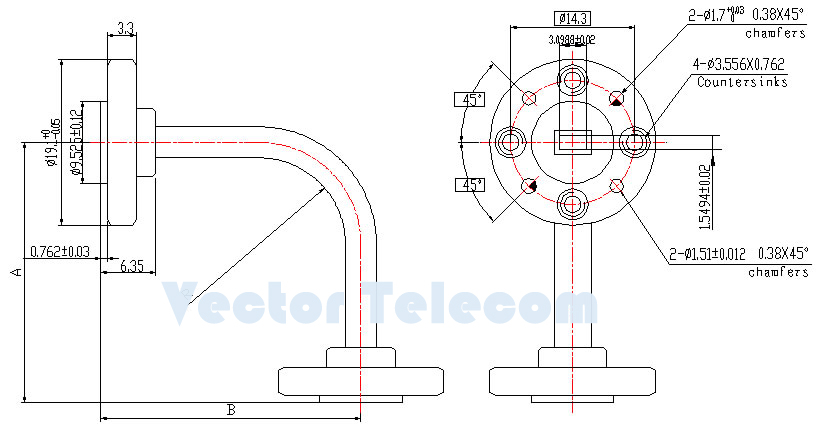

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
