Rectangle WG Straight - VT740WAL50PPCWR12 Straight Waveguide
MODEL NO VT740WAL50PPC
FREQ RANGE (GHz) 60.5-91.9
VSWR Max 1.1
FLANGE TYPE FUGP
MATERIAL Cu
WG TYPE (IEC/EIA) R740/WR12
LENGTH (mm) 50

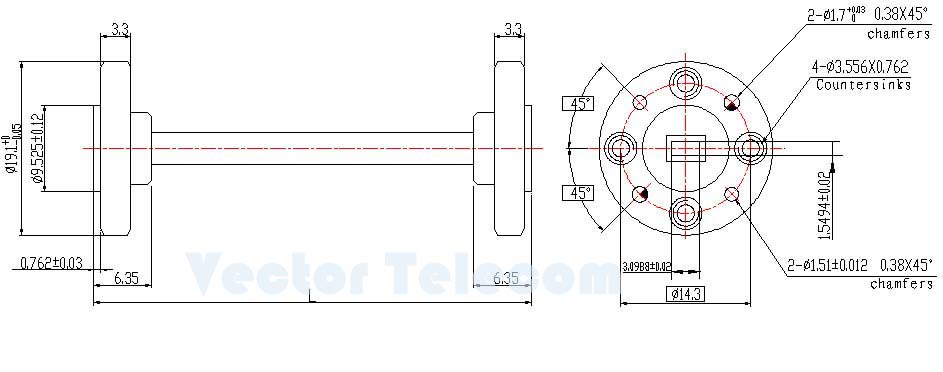

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Straight waveguide can be manufactured with different flange types. The available body materials include copper/brass, aluminum. We also supply other special configurations to meet customer's specific requirements.
