Rectangle WG Twist - VT70WTA150PPCWR137 Waveguide Twist
MODEL NO VT70WTA150PPC
FREQ RANGE (GHz) 5.38-8.17
VSWR Max 1.1
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu
WG TYPE (IEC/EIA) R70/WR137
MINIMUM LENGTH (mm) 150

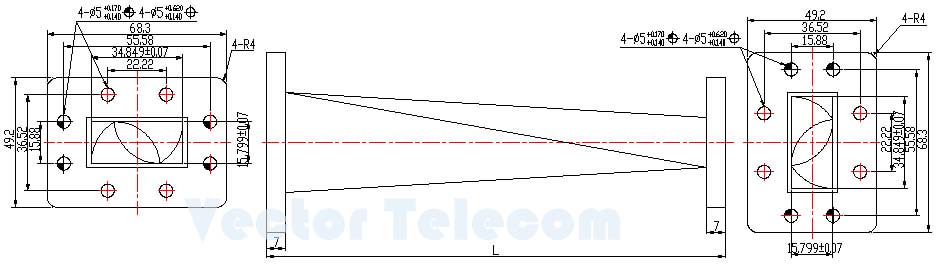

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.

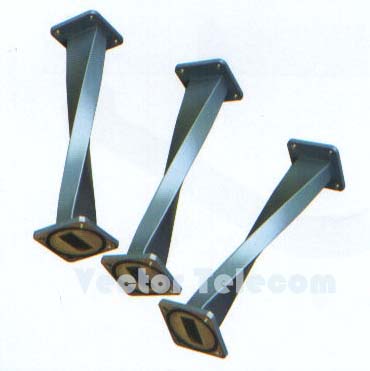

Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
