Waveguide Medium Power Termination - VT58WHPL
WR159 Waveguide High Power Termination
| MODEL NO |
VT58WHPL |
| FREQ RANGE (GHz) |
4.64-7.05 |
| VSWR Max |
1.25 |
| RETURN LOSS (dB) |
20 |
| POWER HANDLING (W) |
4000 |
| OPERATION TEMP (°C) |
-40~+70 |
| SIZE H*W*L (mm) |
|
| FLANGE TYPE |
FDP/FDM |
| WAVEGUIDE TYPE |
WR159 |
| MATERIAL |
Al/Cu |

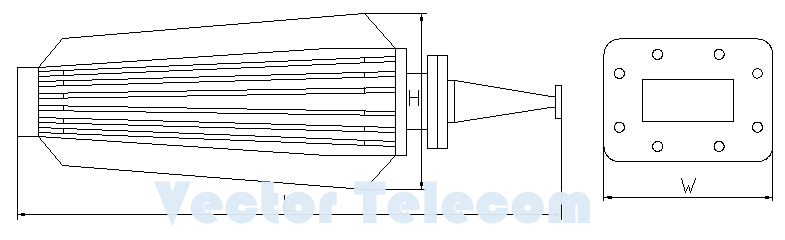

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |

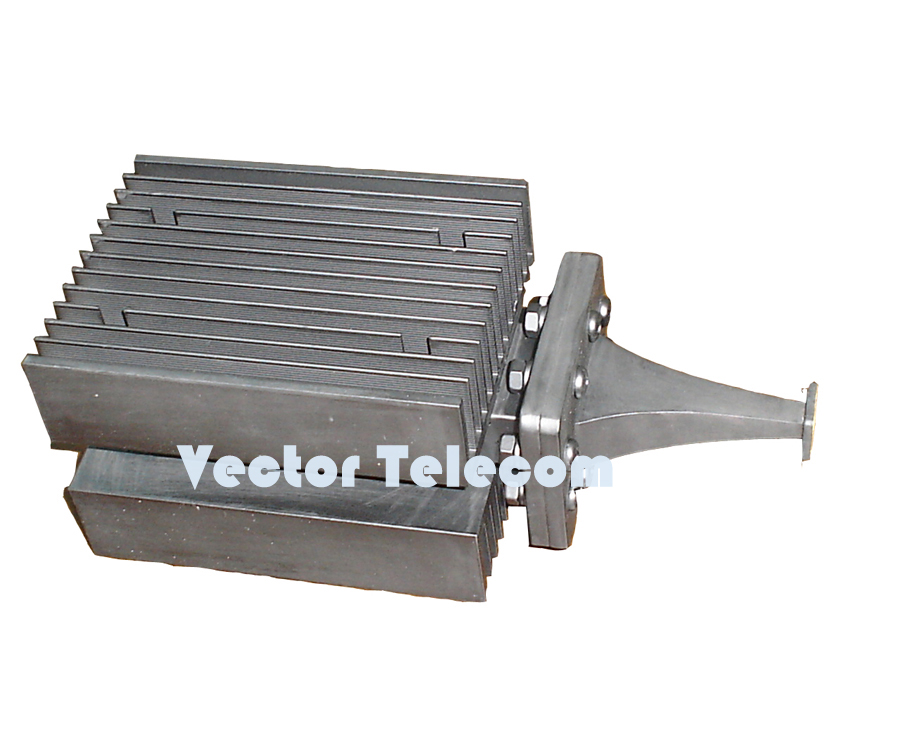

Waveguide high power termination is manufactured by casting with fins. The special heat-resistant absorbing material and heat emission mechanical design improve the overall capability. The termination loads offer less than 1.25 VSWR over full waveguide bandwidth.
| |
