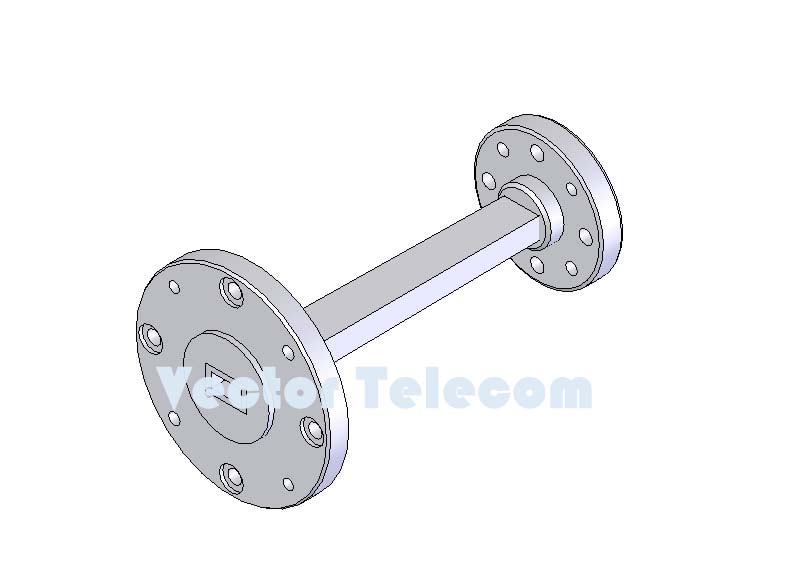

Rectangle WG Transition - VT500620WA50PPCWR19 to WR15 Waveguide Transition
MODEL NO VT500620WA50PPC
FREQ RANGE (GHz) 49.8-59.6
VSWR Max 1.15
LENGTH (mm) 50
PORT 1 WG TYPE (IEC/EIA) R500/WR19
PORT 2 WG TYPE (IEC/EIA) R620/WR15
FLANGE TYPE FUGP
MATERIAL Cu

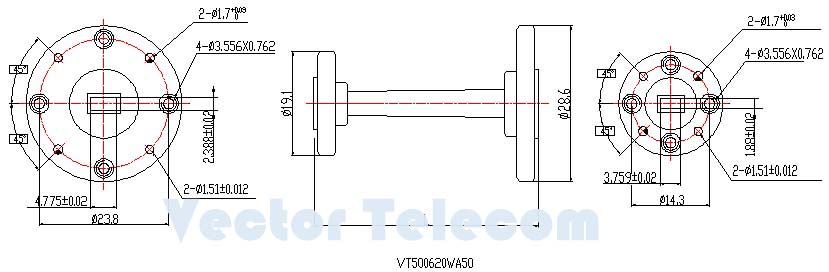

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
