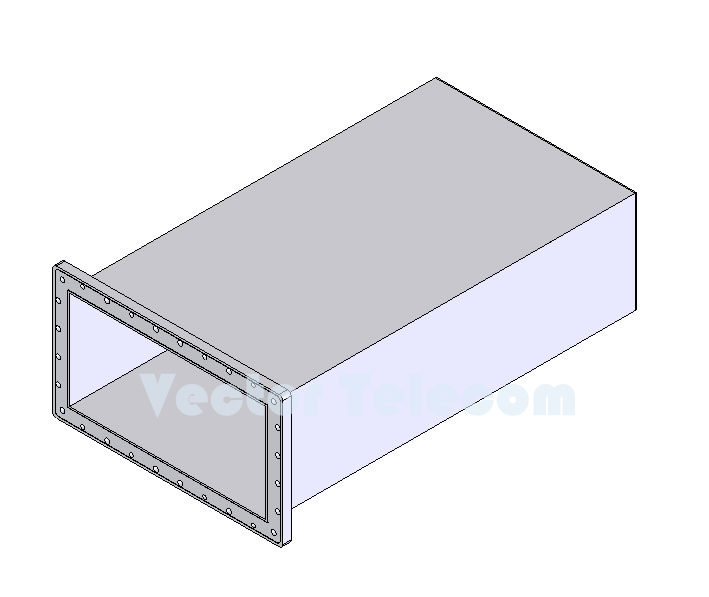

WG Low Power Termination - VT4WL1.05PAWR2100 Waveguide Low Power Termination
MODEL NO VT4WL1.05PA
FREQ RANGE (GHz) 0.35-0.53
VSWR Max 1.05
AVG POWER (W) 20
LENGTH (L) (mm) 1900
WG TYPE (IEC/EIA) R4/WR2100
FLANGE TYPE FDP/FDM
MATERIAL Al

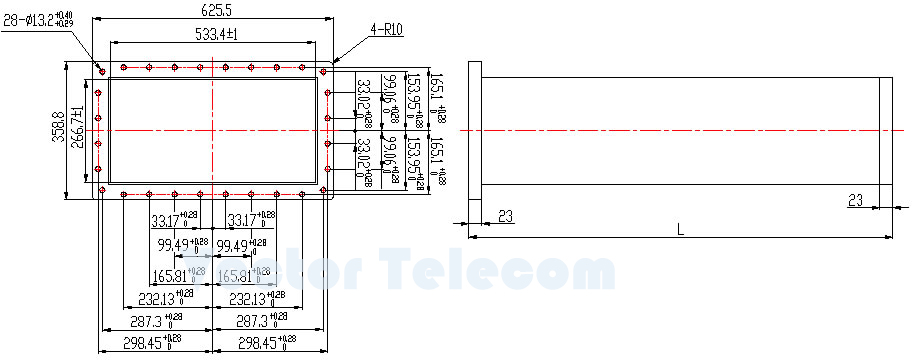

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Low Power Termination is useful when a matched port termination is required. The precision conical load elements improve stable electrical performance. VSWR is less than 1.05 over the full waveguide bandwidth.
