Waveguide Twist - VT48WTA200PPC
WR187 Waveguide Twist
MODEL NO VT48WTA200PPC
FREQ RANGE (GHz) 3.94-5.99
VSWR Max 1.1
MINIMUM LENGTH (mm) 200
WG TYPE (IEC/EIA) R48/WR187
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

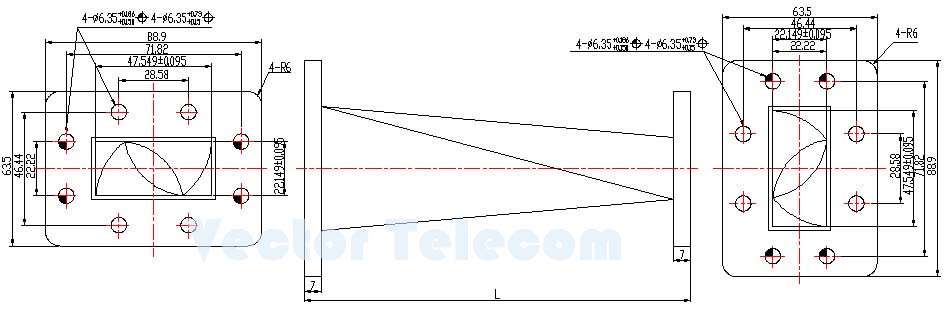

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.

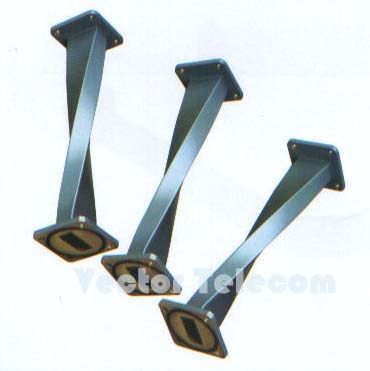

Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
