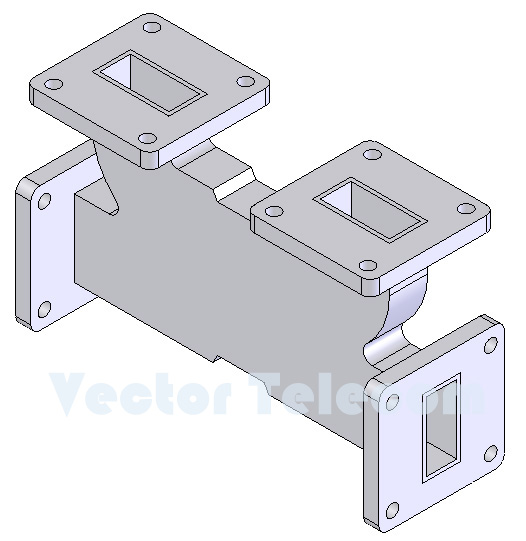

3dB WG Combiner/Divider - VT32WSUC3WR284 3dB Waveguide Combiner and Divider
MODEL NO VT32WSUC3
FREQ RANGE (GHz) 2.6-3.95
VSWR Max 1.3
ISOLATION (dB) Min 30
OPERATION TEMP (°C) -40~70
FLANGE TYPE FDP/FDM
WAVEGUIDE TYPE WR284
MATERIAL Al/Cu
COUPLING LEVEL (dB) 3
BANDWIDTH
OPERATING BANDWIDTH*** Max
COUPLING**** (dB)

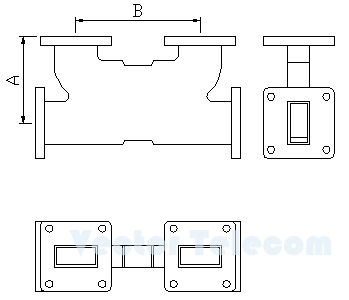

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
3dB Waveguide Combiners/Dividers are typically used for power distribution or power combination. It features small volume, the standard coupling level is 3 dB, the pSGAHse difference is 90° at distribution holes. The flange type and sizes can be custom made as per customer's specific requirements.
