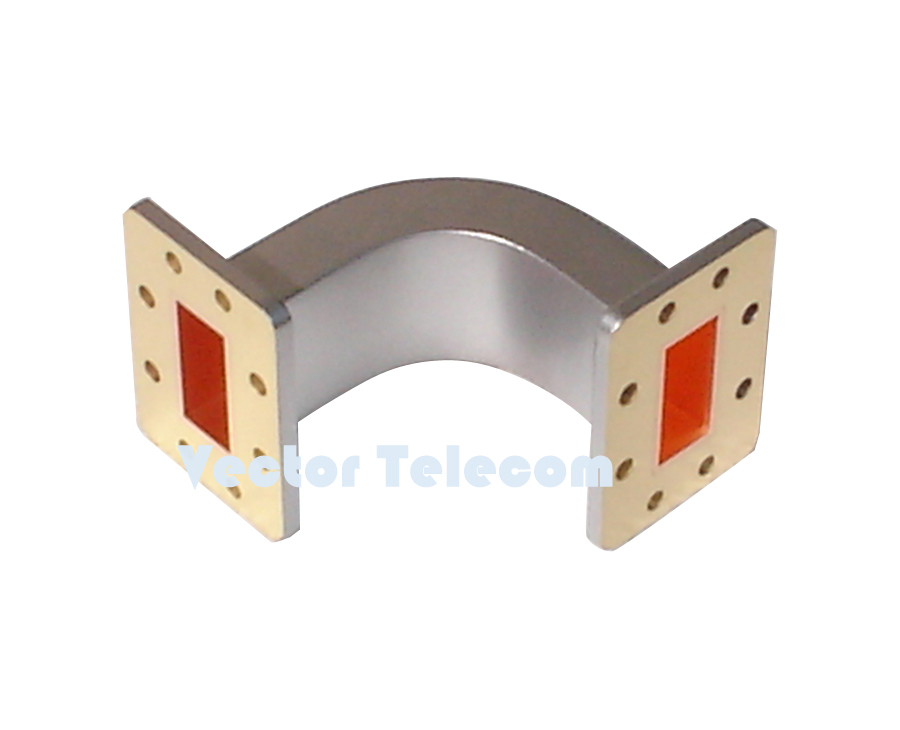

Waveguide Bend - VT32WEB100X100PPA
WR284 E-bend
MODEL NO VT32WEB100X100PPA
FREQ RANGE (GHz) 2.60-3.95
VSWR Max 1.1
STD DIMENSIONS A*B*R (mm)*** 100*100*40
WG TYPE (IEC/EIA) R32/WR284
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

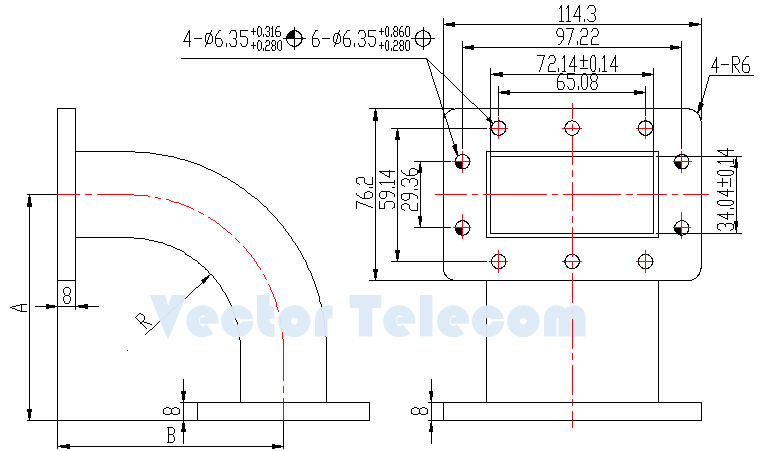

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
