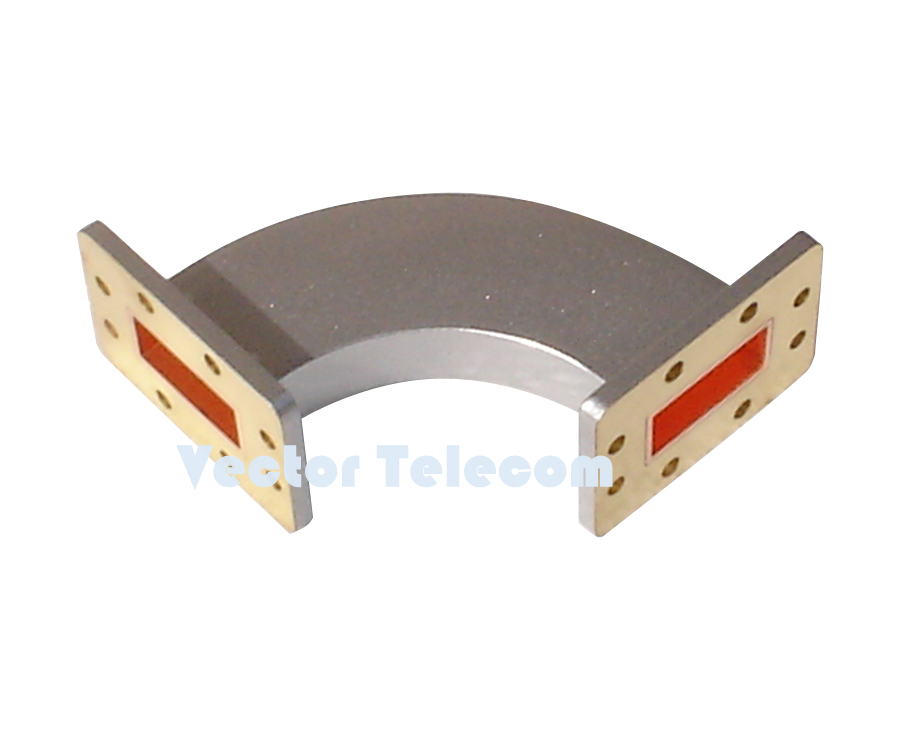

Waveguide Bend - VT320WHB30X30PPC
WR28 H-bend
MODEL NO VT320WHB30X30PPC
FREQ RANGE (GHz) 26.3-40.0
VSWR Max 1.15
STD DIMENSIONS A*B*R (mm)*** 30*30*15
WG TYPE (IEC/EIA) R320/WR28
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

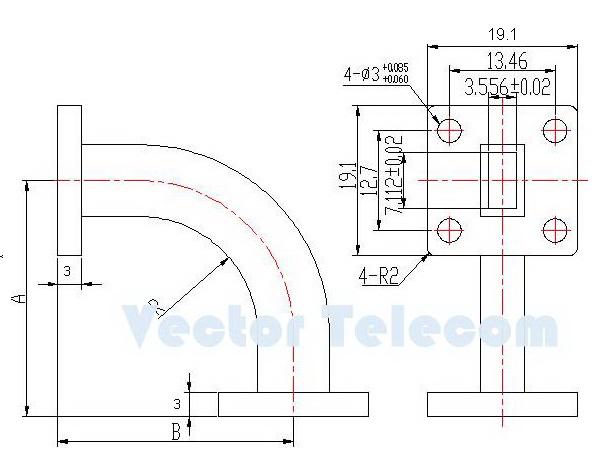

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
