Rectangle WG Transition - VT2632WA200PPAWR340 to WR284 Waveguide Transition
MODEL NO VT2632WA200PPA
FREQ RANGE (GHz) 2.60-3.30
VSWR Max 1.1
LENGTH (mm) 200
PORT 1 WG TYPE (IEC/EIA) R26/WR340
PORT 2 WG TYPE (IEC/EIA) R32/WR284
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

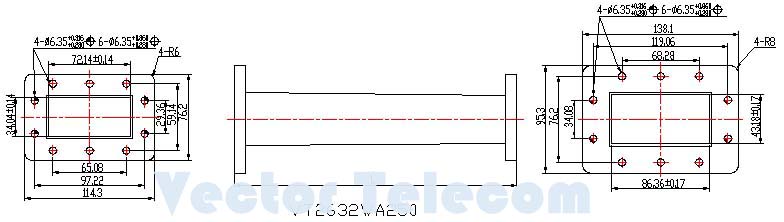

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
