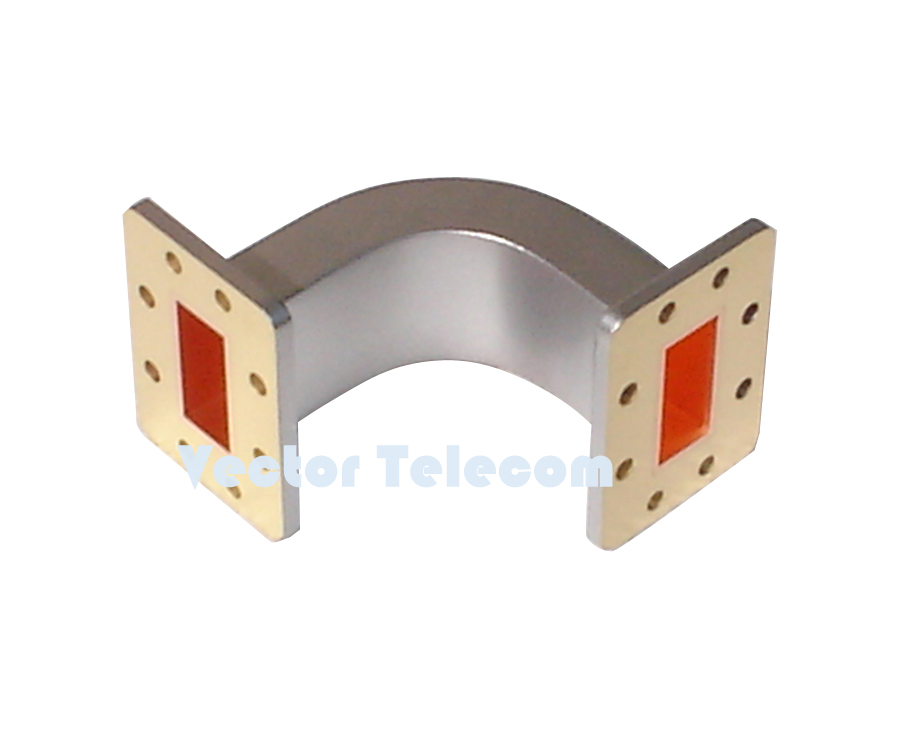

Waveguide Bend - VT22WEB190X190PPA
WR430 E-bend
MODEL NO VT22WEB190X190PPA
FREQ RANGE (GHz) 1.72-2.61
VSWR Max 1.15
STD DIMENSIONS A*B*R (mm)*** 190*190*95
WG TYPE (IEC/EIA) R22/WR430
FLANGE TYPE FDP/FDM
MATERIAL Al/Cu

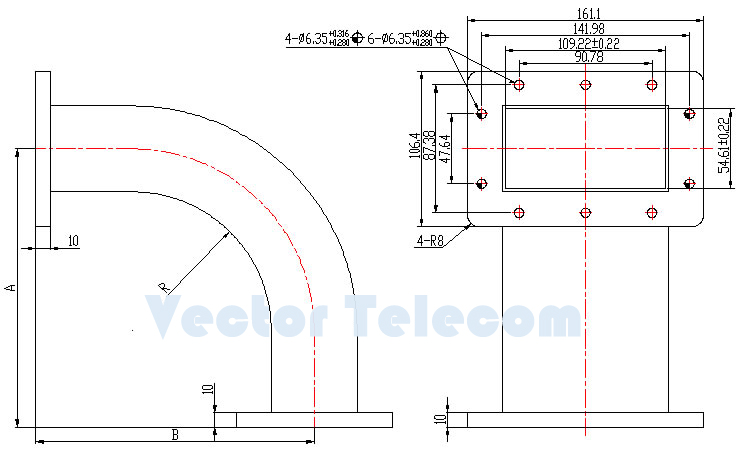

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
