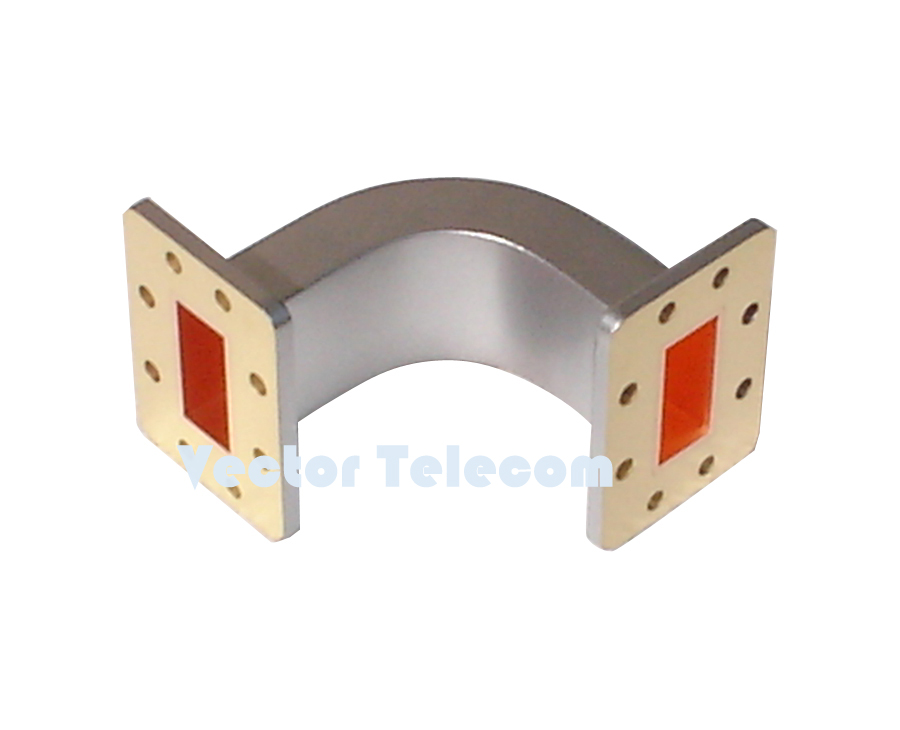

Waveguide Bend - VT220WEB30X30PPC
WR42 E-bend
MODEL NO VT220WEB30X30PPC
FREQ RANGE (GHz) 17.6-26.7
VSWR Max 1.15
STD DIMENSIONS A*B*R (mm)*** 30*30*15
WG TYPE (IEC/EIA) R220/WR42
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

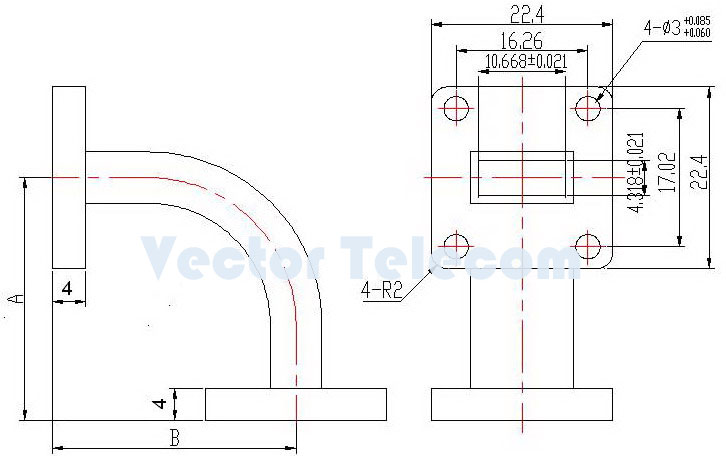

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
