Waveguide Bend - VT18WTHB150X150PPA
WR510 Mitered H-bend
MODEL NO VT18WTHB150X150PPA
FREQ RANGE (GHz) 1.45-2.20
VSWR Max 1.15
STD DIMENSIONS A*B*R (mm)*** 150*150
WG TYPE (IEC/EIA) R18/WR510
FLANGE TYPE FDP/FDM
MATERIAL Al

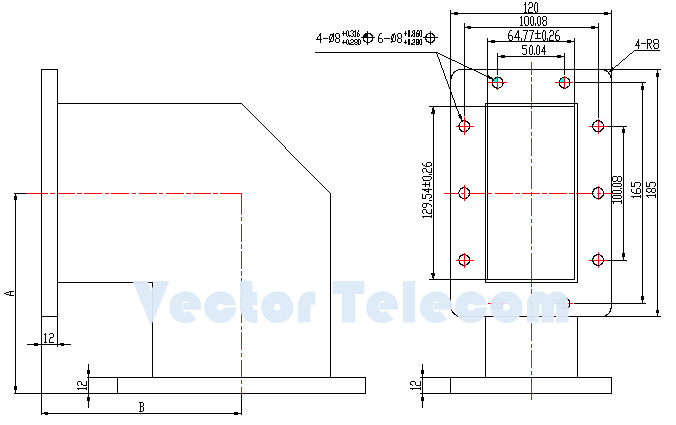

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
