Rectangle WG Twist - VT180WTA50PPCWR51 Waveguide Twist
MODEL NO VT180WTA50PPC
FREQ RANGE (GHz) 14.5-22.0
VSWR Max 1.1
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu
WG TYPE (IEC/EIA) R180/WR51
MINIMUM LENGTH (mm) 50

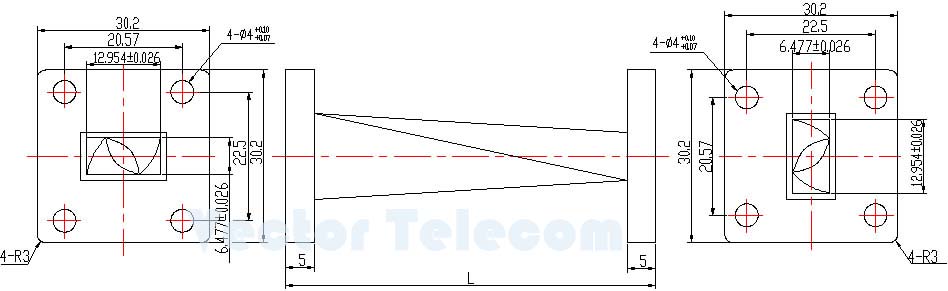

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.

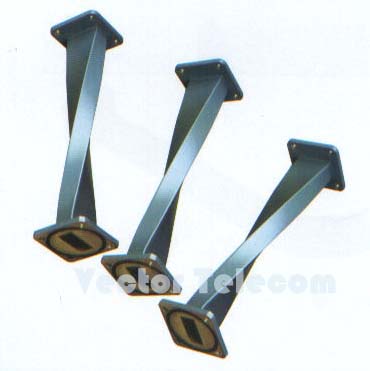

Waveguide Twist allows changing the direction of the waveguide port and for polarization purpose. The twist angle, direction, length and flange type can be custom made as per customer's specific requirements.
