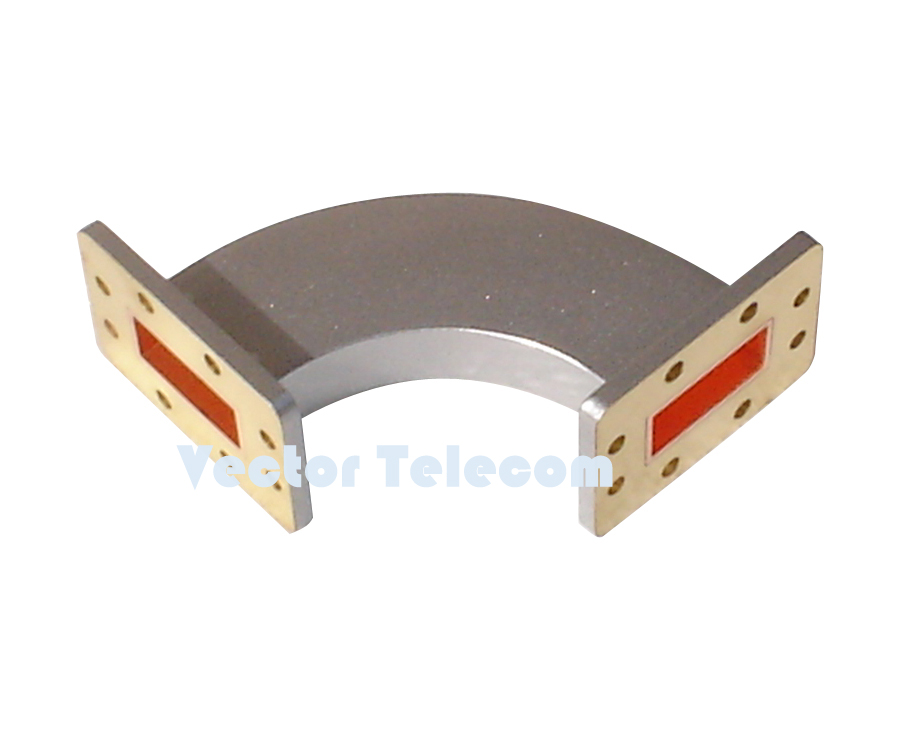

Waveguide Bend - VT140WHB40X40PPC
WR62 H-bend
MODEL NO VT140WHB40X40PPC
FREQ RANGE (GHz) 11.9-18.0
VSWR Max 1.1
STD DIMENSIONS A*B*R (mm)*** 40*40*25
WG TYPE (IEC/EIA) R140/WR62
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

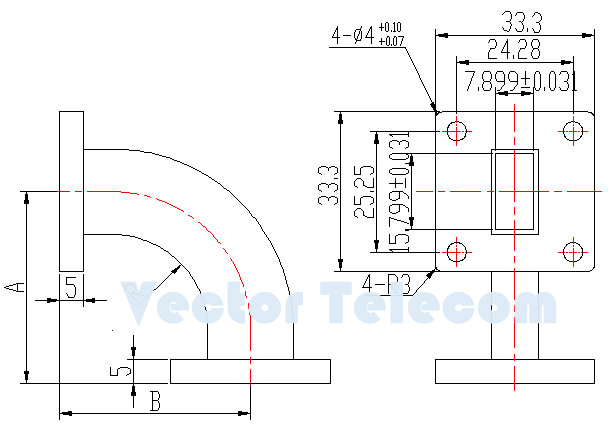

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
