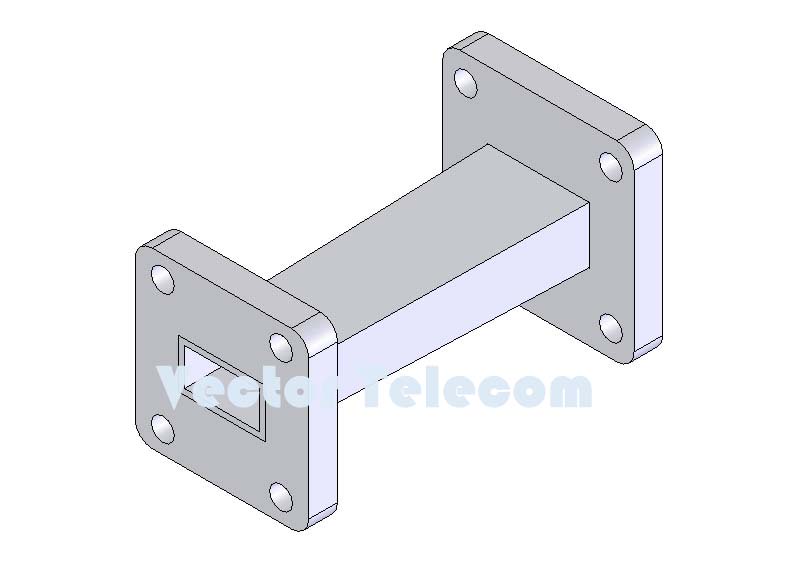

Rectangle WG Transition - VT140180WA60PPCWR62 to WR51 Waveguide Transition
MODEL NO VT140180WA60PPC
FREQ RANGE (GHz) 14.5-18.0
VSWR Max 1.1
LENGTH (mm) 60
PORT 1 WG TYPE (IEC/EIA) R140/WR62
PORT 2 WG TYPE (IEC/EIA) R180/WR51
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

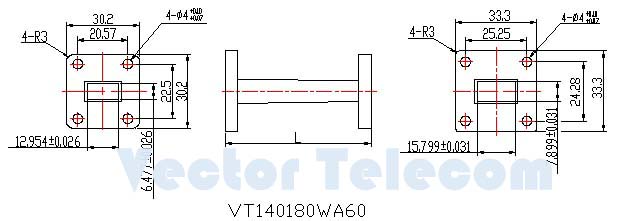

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
