Waveguide Bend - VT12WTHB200X200PPA
WR770 Mitered H-bend
MODEL NO VT12WTHB200X200PPA
FREQ RANGE (GHz) 0.96-1.46
VSWR Max 1.15
STD DIMENSIONS A*B*R (mm)*** 200*200
WG TYPE (IEC/EIA) R12/WR770
FLANGE TYPE FDP/FDM
MATERIAL Al

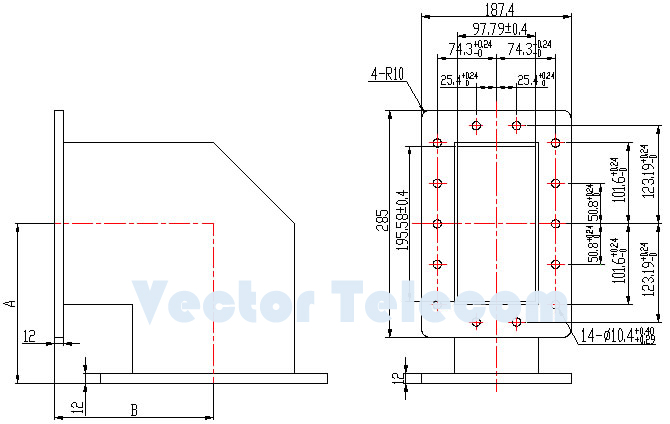

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
