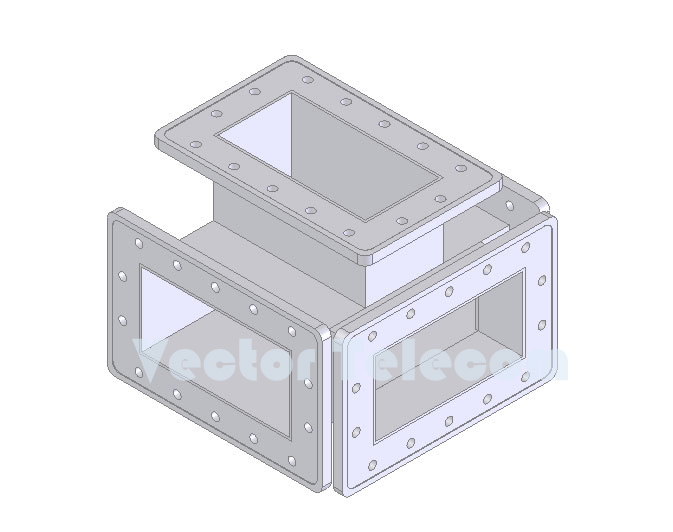

Magic Hybrid Tee - VT12WMTAWR770 Waveguide Magic Tee
MODEL NO VT12WMTA
FREQ RANGE (GHz) 0.96-1.46
OPERATING BANDWIDTH*** Max 20%
VSWR Max 1.20(H-Arm),1.50(E-Arm)
ISOLATION (H&E ARMS) (dB) 35
UNBALANCE (dB) Max ±0.25
WG TYPE (IEC/EIA) R12/WR770
FLANGE TYPE FDP/FDM
MATERIAL Al

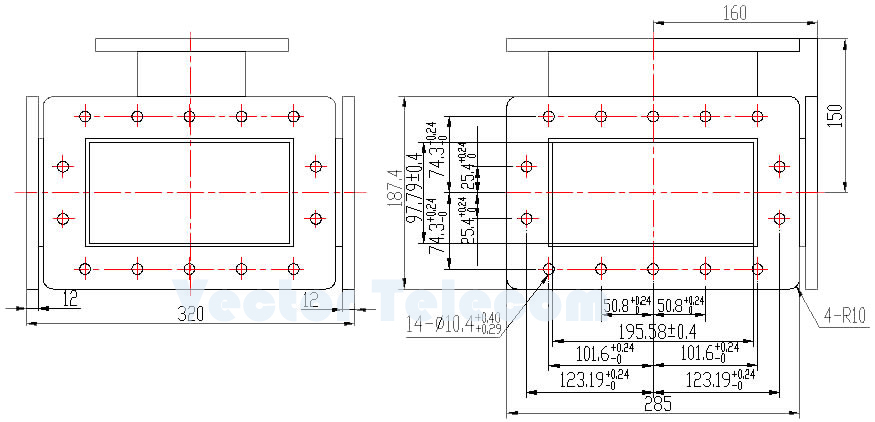

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
Magic tees are typically used for power dividers or combiners for many systems applications. This is four ports coupler. The flange type can be custom made as per customer's specific requirements.
