H-Plane Tee - VT120WHT
WR75 H-Plane Tee
| MODEL NO |
VT120WHT |
| FREQ RANGE (GHz) |
10.0-15.0 |
| WG TYPE (IEC/EIA) |
R120/WR75 |
| FLANGE TYPE |
FBP/FBM/FBE |
| MATERIAL |
Al/Cu |

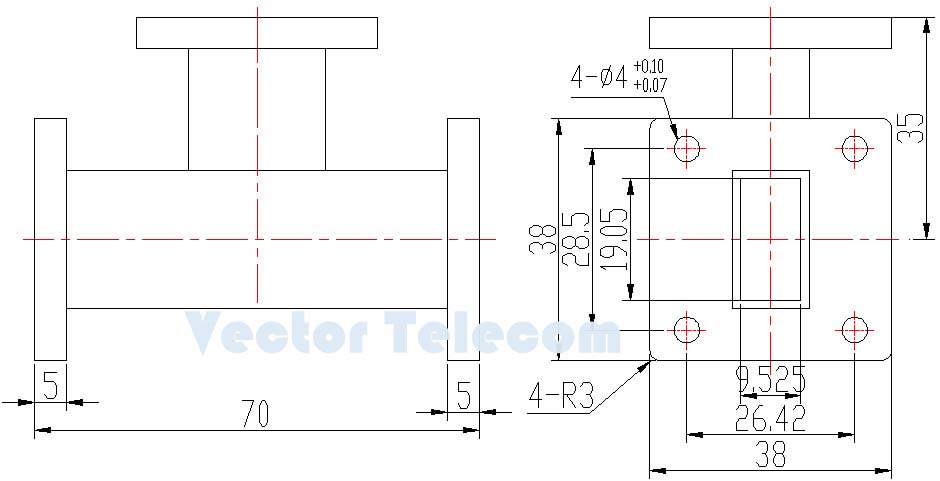

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |
It is typically used for power dividers or combiners for many systems applications. Flange types can be custom made as per customer's specific requirements.
| |
