Waveguide Bend - VT120WHB45X45PPC
WR75 H-bend
MODEL NO VT120WHB45X45PPC
FREQ RANGE (GHz) 9.84-15.0
VSWR Max 1.1
STD DIMENSIONS A*B*R (mm)*** 45*45*30
WG TYPE (IEC/EIA) R120/WR75
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

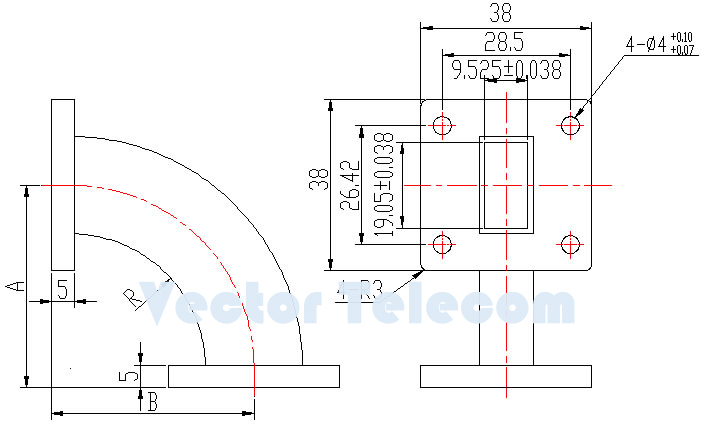

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
A wide variaty of radius and mitered bend waveguides can be manufactured with different flange types. The available body materials are copper/brass, aluminum. Multi-degree bends can be specially designed for every customers unique requirements.
