Waveguide Transition - VT120140WA75PPC

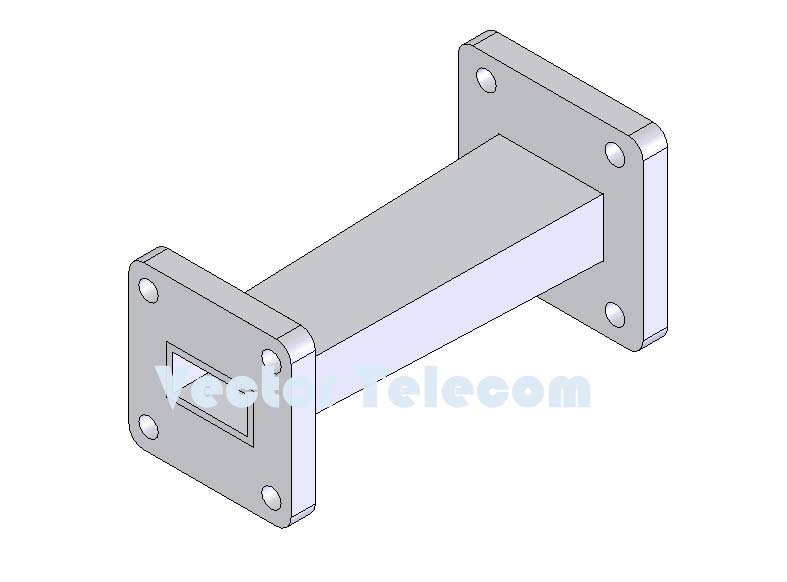

WR75 to WR62 Waveguide Transition
MODEL NO VT120140WA75PPC
FREQ RANGE (GHz) 11.9-15.0
VSWR Max 1.1
LENGTH (mm) 75
PORT 1 WG TYPE (IEC/EIA) R120/WR75
PORT 2 WG TYPE (IEC/EIA) R140/WR62
FLANGE TYPE FBP/FBM/FBE
MATERIAL Al/Cu

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.
The transitions are used for connecting waveguides in different shapes and sizes to ensure high mechanical tolerance, surface smoothness and minimum loss. Flange type and length can be custom made as per customer's specific requirements.
