Magic Hybrid Tee - VT100WMTCWR90 Waveguide Magic Tee

« PRODUCTS LISTING

MODEL NO	VT100WMTC
FREQ RANGE (GHz)	8.20-12.4
OPERATING BANDWIDTH*** Max	20%
VSWR Max	1.20(H-Arm),1.50(E-Arm)
ISOLATION (H&E ARMS) (dB)	35
UNBALANCE (dB) Max	±0.4
WG TYPE (IEC/EIA)	R100/WR90
FLANGE TYPE	FBP/FBM/FBE
MATERIAL	Al/Cu

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements.

PDF Datasheet

Request a Quote

Magic tees are typically used for power dividers or combiners for many systems applications. This is four ports coupler. The flange type can be custom made as per customer's specific requirements.

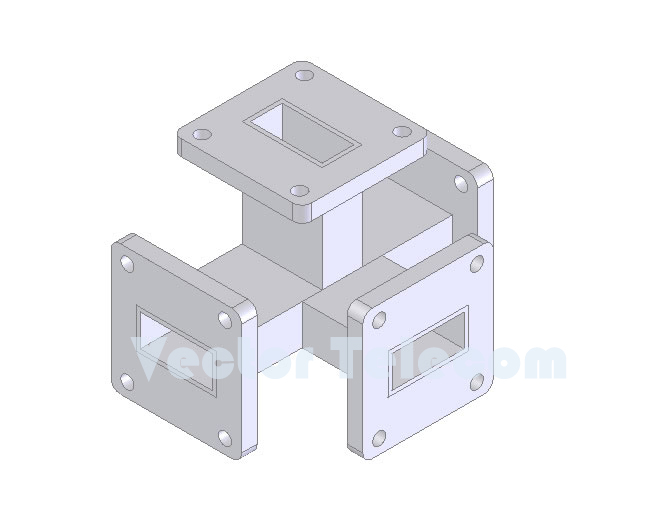

+ Sample Image - enlarge

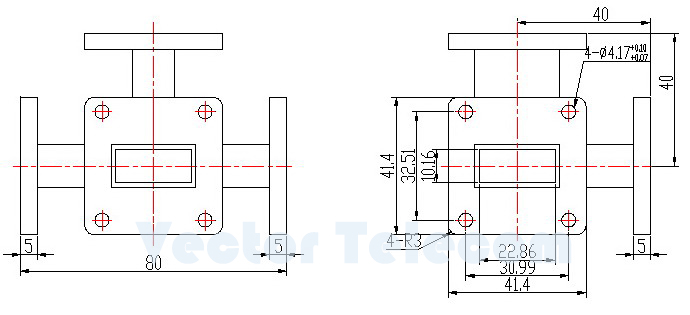

+ Mechanical Drawing - enlarge
