Waveguide Medium Power Termination - VT100WHPL
WR90 Waveguide High Power Termination
| MODEL NO |
VT100WHPL |
| FREQ RANGE (GHz) |
8.20-12.50 |
| VSWR Max |
1.25 |
| RETURN LOSS (dB) |
20 |
| POWER HANDLING (W) |
2000 |
| OPERATION TEMP (°C) |
-40~+70 |
| SIZE H*W*L (mm) |
|
| FLANGE TYPE |
FBP/FBM/FDP/FDM |
| WAVEGUIDE TYPE |
WR90 |
| MATERIAL |
Al/Cu |

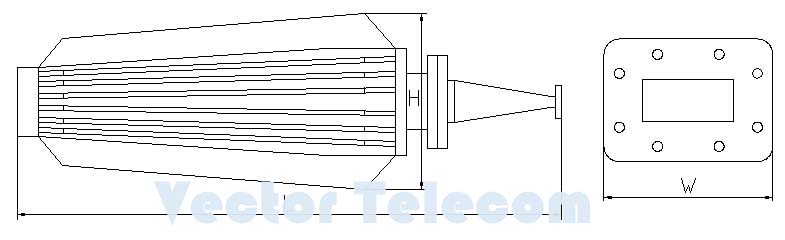

* Please refer to the Technical Reference section for flange types/connectors details.The outline drawings shown are standard versions. Please contact us for your specific requirements. |

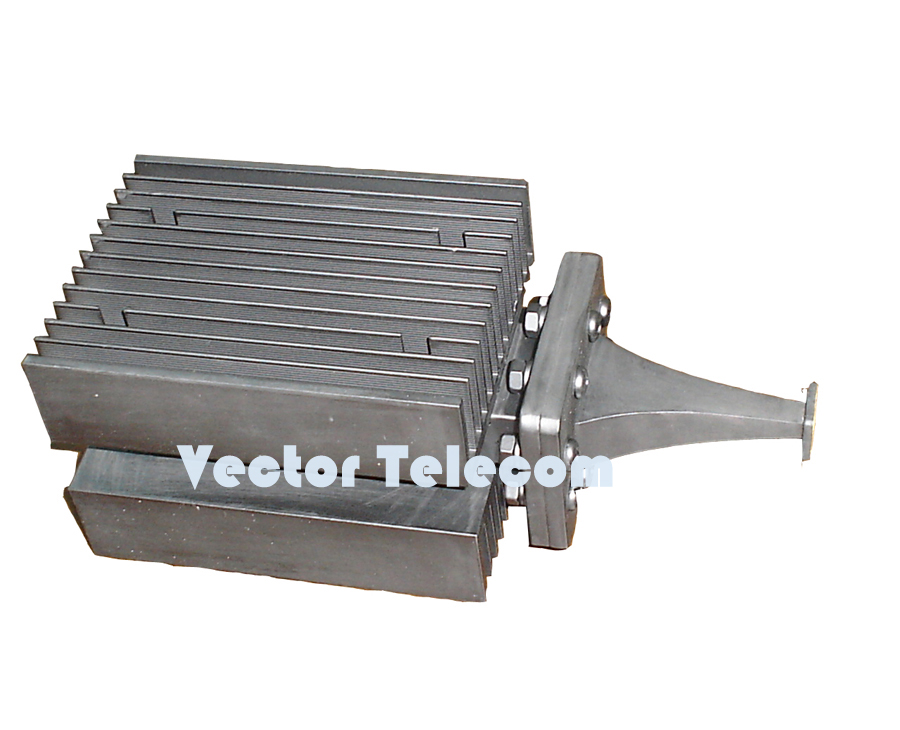

Waveguide high power termination is manufactured by casting with fins. The special heat-resistant absorbing material and heat emission mechanical design improve the overall capability. The termination loads offer less than 1.25 VSWR over full waveguide bandwidth.
| |
