Flexible Seamless WG
Vector Telecom offers a standard product line of rectangular Flexible Seamless Waveguide. They are used in requirements where bending of the waveguide and high power is needed. For more information feel free to call us and discuss your needs with one of our sales engineers.
Flexible Seamless WGFlexible Seamless WG
Download Flexible Seamless WG Catalogue »
Flexible Seamless WG Product Range
 MODEL NO  FREQ RANGE  VSWR  ATTN  AVG POWER  INNER DIAMETER  PRESSURE  BEND RADIUS (E Plane)  BEND RADIUS (H Plane)  PDF Datasheet
  (GHz) Max (dB/m) (W) (mm) Max(MPa) Min (mm) Min (mm)
VT14WWEL 1.20-1.70 1.1 0.12 20k 165.10X82.55 0.2 500 1000 more »
VT22WWEL 1.70-2.60 1.1 0.15 20k 109.22X54.61 0.2 312 624 more »
VT26WWEL 2.17-3.30 1.1 0.15 20k 86.36X43.18 0.2 260 520 more »
VT32WWEL 2.60-3.95 1.1 0.15 10k 72.14X34.04 0.2 204 408 more »
VT40WWEL 3.30-4.90 1.1 0.17 8k 58.17X29.08 0.2 166 332 more »
VT48WWEL 3.95-5.85 1.1 0.24 6.5k 47.55X22.15 0.2 160 320 more »
VT58WWEL 4.90-7.05 1.1 0.26 6k 40.39X20.19 0.2 129 258 more »
VT70WWEL 5.85-8.20 1.1 0.3 5k 34.85X15.80 0.2 100 200 more »
VT84WWEL 7.05-10.0 1.1 0.35 4k 28.50X12.62 0.2 76 152 more »
VT100WWEL 8.20-12.40 1.1 0.45 3k 22.86X10.16 0.2 66 132 more »
VT120WWEL 10.0-15.0 1.15 0.65 1.5k 19.05X9.53 0.2 63 126 more »
VT140WWEL 12.40-18.0 1.15 0.74 1k 15.80X7.90 0.2 56 112 more »
VT180WWEL 14.5-22.0 1.15 1.15 0.5k 12.95X6.48 0.2 50 100 more »
VT220WWEL 17.70-26.50 1.2 1.4 0.3k 10.67X4.32 0.2 38 76 more »
VT260WWEL 22.0-33.0 1.25 1.6 0.2k 8.64X4.32 0.2 35 70 more »
VT320WWEL 26.5-40.0 1.3 2.4 0.15k 7.11X3.56 0.2 20 40 more »

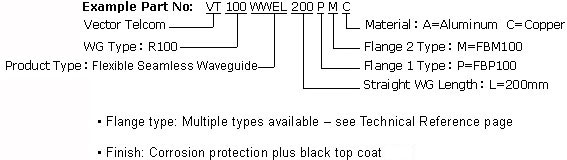

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model Number code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
