Broadwall Directional Coupler - 2 WG Ports & 1 Coax Port
Vector Telecom manufactures a standard product line of multi-hole broadwall directional couplers covering a wide frequency range. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm. Directional couplers are typically used for power sampling, frequency monitoring, especially in the test setups where power reflection measurements are required. Additional sizes and special configurations are available on request.
Broadwall Directional Coupler - 2 WG Ports & 1 Coax PortBroadwall Directional Coupler - 2 WG Ports & 1 Coax Port
Download Broadwall Directional Coupler - 2 WG Ports & 1 Coax Port Catalogue »
Broadwall Directional Coupler - 2 WG Ports & 1 Coax Port Product Range
 MODEL NO  FREQ RANGE  VSWR  COUPLING***  DIRECTIVITY  CONNECTOR  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz) Max (dB) (dB) Min
VT9WCXNKPPA 0.75-1.15 1.1(Main),1.25(Sec) 3~60 30~40 N-K R9/WR975 FDP/FDM Al
VT12WCXNKPPA 0.96-1.46 1.1(Main),1.25(Sec) 3~60 30~40 N-K R12/WR770 FDP/FDM Al
VT14WCXNKPPA 1.13-1.73 1.1(Main),1.25(Sec) 3~60 30~40 N-K R14/WR650 FDP/FDM Al
VT18WCXNKPPA 1.45-2.20 1.1(Main),1.25(Sec) 3~60 30~40 N-K R18/WR510 FDP/FDM Al
VT22WCXNKPPA 1.72-2.61 1.1(Main),1.25(Sec) 3~60 30~40 N-K R22/WR430 FDP/FDM Al
VT26WCXNKPPA 2.17-3.30 1.1(Main),1.25(Sec) 3~60 30~40 N-K R26/WR340 FDP/FDM Al
VT32WCXNKPPA 2.60-3.95 1.1(Main),1.25(Sec) 3~60 30~40 N-K R32/WR284 FDP/FDM Al
VT40WCXNKPPA 3.22-4.90 1.1(Main),1.25(Sec) 3~60 30~40 N-K R40/WR229 FDP/FDM Al
VT48WCXNKPPA 3.94-5.99 1.1(Main),1.25(Sec) 3~60 30~40 N-K R48/WR187 FDP/FDM Al
VT58WCXNKPPA 4.64-7.05 1.1(Main),1.25(Sec) 3~60 30~40 N-K R58/WR159 FDP/FDM Al
VT70WCXNKPPA 5.38-8.17 1.1(Main),1.25(Sec) 3~60 30~40 N-K R70/WR137 FDP/FDM Al
VT84WCXNKPPC 6.57-9.99 1.1(Main),1.25(Sec) 3~60 30~40 N-K R84/WR112 FBP/FBM/FBE Cu
VT100WCXNKPPC 8.20-12.40 1.1(Main),1.25(Sec) 3~60 30~40 N-K R100/WR90 FBP/FBM/FBE Cu
VT120WCXNKPPC 9.84-15.0 1.1(Main),1.25(Sec) 3~60 30~40 N-K R120/WR75 FBP/FBM/FBE Cu
VT140WCXSKPPC 11.9-18.0 1.1(Main),1.25(Sec) 3~60 30~40 SMA-K R140/WR62 FBP/FBM/FBE Cu
VT180WCXSKPPC 14.5-22.0 1.1(Main),1.25(Sec) 3~60 30~40 SMA-K R180/WR51 FBP/FBM/FBE Cu
VT220WCX2.92KPPC 17.6-26.7 1.1(Main),1.5(Sec) 3~60 30~40 2.92-K R220/WR42 FBP/FBM/FBE Cu
VT260WCX2.92KPPC 21.7-33.0 1.1(Main),1.5(Sec) 3~60 30~40 2.92-K R260/WR34 FBP/FBM/FBE Cu
VT320WCX2.92KPPC 26.5-40.0 1.1(Main),1.5(Sec) 3~60 30~40 2.92-K R320/WR28 FBP/FBM/FBE Cu

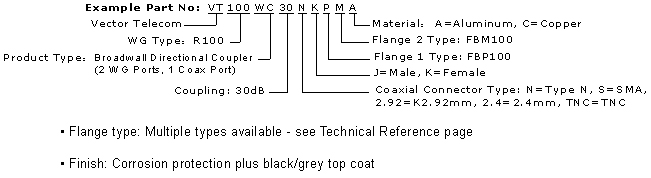

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Nominal Accuracy: ?± 0.7dB, Frequency Sensitivity: ?± 1dB
[Ordering Information]
