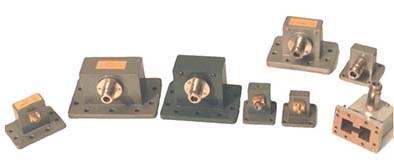

Waveguide to Coaxial Adapter - Right Angle
Vector Telecom manufactures Waveguide to Coaxial Adapters covering a full frequency range for Rectangular Waveguides, with multiple flange and coaxial connector types and configurations available. For more information feel free to call us and discuss your needs with one of our sales engineers.Waveguide to Coaxial Adapter - Right Angle
Waveguide to Coaxial Adapter - Right Angle
Download Waveguide to Coaxial Adapter - Right Angle Catalogue »
Waveguide to Coaxial Adapter - Right Angle Product Range
 MODEL NO  FREQ RANGE  VSWR  DIMENSIONS (L*B*A)  WG TYPE (IEC/EIA)  FLANGE TYPE  CONNECTOR  MATERIAL  PDF Datasheet
  (GHz) Max (mm)
VT3WCANKPA 0.32-0.49 1.25 R3/WR2300 FDP/FDM Type N, SMA, TNC Al
VT4WCANKPA 0.35-0.53 1.25 R4/WR2100 FDP/FDM Type N, SMA, TNC Al
VT5WCANKPA 0.41-0.62 1.25 R5/WR1800 FDP/FDM Type N, SMA, TNC Al
VT6WCANKPA 0.49-0.75 1.25 R6/WR1500 FDP/FDM Type N, SMA, TNC Al
VT8WCANKPA 0.64-0.98 1.25 R8/WR1150 FDP/FDM Type N, SMA, TNC Al
VT9WCANKPA 0.75-1.15 1.25 R9/WR975 FDP/FDM Type N, SMA, TNC Al
VT12WCANKPA 0.96-1.46 1.25 R12/WR770 FDP/FDM Type N, SMA, TNC Al
VT14WCANKPA 1.13-1.73 1.25 R14/WR650 FDP/FDM Type N, SMA, TNC Al/Cu
VT18WCANKPA 1.45-2.20 1.25 R18/WR510 FDP/FDM Type N, SMA, TNC Al/Cu
VT22WCANKPA 1.72-2.61 1.25 R22/WR430 FDP/FDM Type N, SMA, TNC Al/Cu
VT26WCANKPA 2.17-3.30 1.25 R26/WR340 FDP/FDM Type N, SMA, TNC Al/Cu
VT32WCANKPA 2.60-3.95 1.25 R32/WR284 FDP/FDM Type N, SMA, TNC Al/Cu
VT40WCANKPA 3.22-4.90 1.25 R40/WR229 FDP/FDM Type N, SMA, TNC Al/Cu
VT48WCANKPA 3.94-5.99 1.25 R48/WR187 FDP/FDM Type N, SMA, TNC Al/Cu
VT48WCASKPA 3.94-5.99 1.25 R48/WR187 FDP/FDM Type N, SMA, TNC Al/Cu
VT58WCANKPC 4.64-7.05 1.25 R58/WR159 FDP/FDM Type N, SMA, TNC Al/Cu
VT58WCASKPC 4.64-7.05 1.25 R58/WR159 FDP/FDM Type N, SMA, TNC Al/Cu
VT70WCANKPC 5.38-8.17 1.25 R70/WR137 FDP/FDM Type N, SMA, TNC Al/Cu
VT70WCASKPC 5.38-8.17 1.25 R70/WR137 FDP/FDM Type N, SMA, TNC Al/Cu
VT84WCANKPC 6.57-9.99 1.25 R84/WR112 FBP/FBE/FBM Type N, SMA, TNC Al/Cu
VT84WCASKPC 6.57-9.99 1.25 R84/WR112 FBP/FBE/FBM Type N, SMA, TNC Al/Cu
VT100WCANKPC 8.20-12.50 1.25 R100/WR90 FBP/FBE/FBM Type N, SMA, TNC Al/Cu
VT100WCASKPC 8.20-12.50 1.25 R100/WR90 FBP/FBE/FBM Type N, SMA, TNC Al/Cu
VT120WCANKPC 9.84-15.0 1.25 R120/WR75 FBP/FBM/FBE Type N, SMA, TNC Al/Cu
VT120WCASKPC 9.84-15.0 1.25 R120/WR75 FBP/FBM/FBE Type N, SMA, TNC Al/Cu
VT140WCANKPC 11.9-18.0 1.25 R140/WR62 FBP/FBM/FBE Type N, SMA, TNC Al/Cu
VT140WCASKPC 11.9-18.0 1.25 R140/WR62 FBP/FBM/FBE Type N, SMA, TNC Al/Cu
VT180WCASKPC 14.5-22.0 1.25 R180/WR51 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT220WCASKPC 17.6-26.0 1.25 R220/WR42 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT220WCA2.92KPC 17.6-26.7 1.25 R220/WR42 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT220WCA2.4KPC 17.6-26.7 1.25 R220/WR42 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT260WCA2.92KPC 21.7-33.0 1.25 R260/WR34 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT260WCA2.4KPC 21.7-33.0 1.25 R260/WR34 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT260WCASKPC 21.7-33.0 1.4 21*21*27 R260/WR34 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT320WCA2.92KPC 26.5-40.0 1.25 R320/WR28 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT320WCA2.4KPC 26.5-40.0 1.25 R320/WR28 FBP/FBE/FBM SMA, K2.92mm, 2.4mm Al/Cu
VT400WCA2.4KPC 33.0-50.0 1.8 R400/WR22 FUGP 2.4mm Cu
VT500WCA1.85KPC 40.0-50.0 2 R500/WR19 FUGP 1.85mm Cu
VT620WCA1.85KPC 55.0-65.0 2 R620/WR15 FUGP 1.85mm Cu
VT740WCA1.0KPC 66.0-86.0 2 R740/WR12 FUGP 1.0mm Cu
VT900WCA1.0KPC 90.0-100.0 2 R900/WR10 FUGP 1.0mm Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
