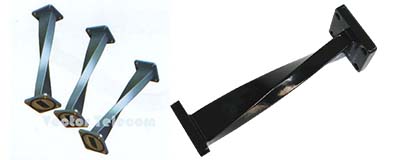

Waveguide Twist

Download Waveguide Twist Catalogue »
Waveguide Twist Product Range
MODEL NO FREQ RANGE VSWR INSERTION LOSS OPERATION TEMP SIZE H*W*L FLANGE TYPE WAVEGUIDE TYPE MATERIAL
  (GHz) Max (dB) Max (°C) (mm)
VT22WTA1000 1.72-2.61 1.1 0.2 -40~+70 L=1000 FDP/FDM WR430 Al/Cu
VT26WTA500 2.17-3.30 1.1 0.2 -40~+70 L=500 FDP/FDM WR340 Al/Cu
VT32WTA300 2.60-3.95 1.1 0.2 -40~+70 L=300 FDP/FDM WR284 Al/Cu
VT40WTA250 3.22-4.90 1.1 0.2 -40~+70 L=250 FDP/FDM WR229 Al/Cu
VT48WTA200 3.94-5.99 1.1 0.2 -40~+70 L=200 FDP/FDM WR187 Al/Cu
VT58WTA200 4.64-7.05 1.1 0.2 -40~+70 L=200 FDP/FDM WR159 Al/Cu
VT70WTA150 5.38-8.17 1.1 0.2 -40~+70 L=150 FDP/FDM WR137 Al/Cu
VT84WTA120 6.57-9.99 1.1 0.2 -40~+70 L=120 FBP/FBM/FBE/FDP/FDM WR112 Al/Cu
VT100WTA100 8.20-12.50 1.1 0.2 -40~+70 L=100 FBP/FBM/FBE/FDP/FDM WR90 Al/Cu
VT120WTA90 9.84-15.0 1.1 0.2 -40~+70 L=90 FBP/FBM/FBE/FDP/FDM WR75 Al/Cu
VT140WTA75 11.9-18.0 1.1 0.2 -40~+70 L=75 FBP/FBM/FBE/FDP/FDM WR62 Al/Cu
VT180WTA70 14.5-22.0 1.1 0.2 -40~+70 L=70 FBP/FBM/FBE/FDP/FDM WR51 Al/Cu
VT220WTA60 17.6-26.7 1.1 0.2 -40~+70 L=60 FBP/FBM/FBE/FDP/FDM WR42 Al/Cu
VT260WTA55 21.7-33.0 1.1 0.2 -40~+70 L=55 FBP/FBM/FBE/FDP/FDM WR34 Al/Cu
VT320WTA55 26.3-40.0 1.1 0.2 -40~+70 L=55 FBP/FBM/FBE/FDP/FDM WR28 Al/Cu

* Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
